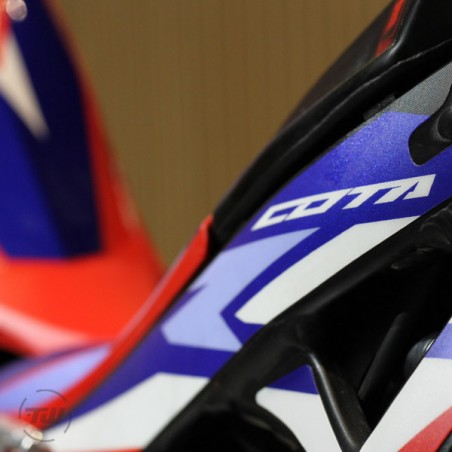

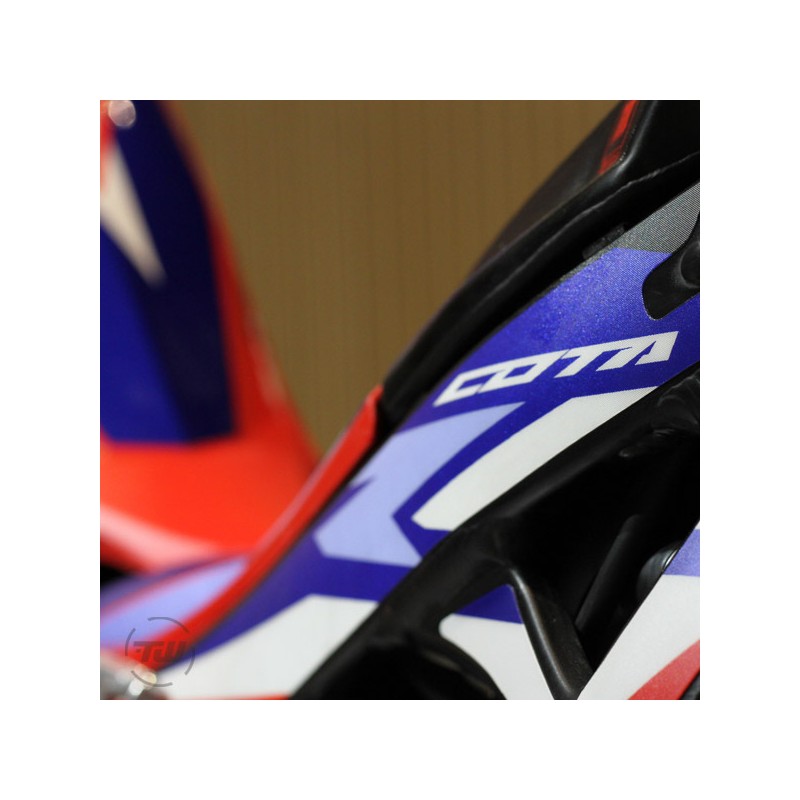

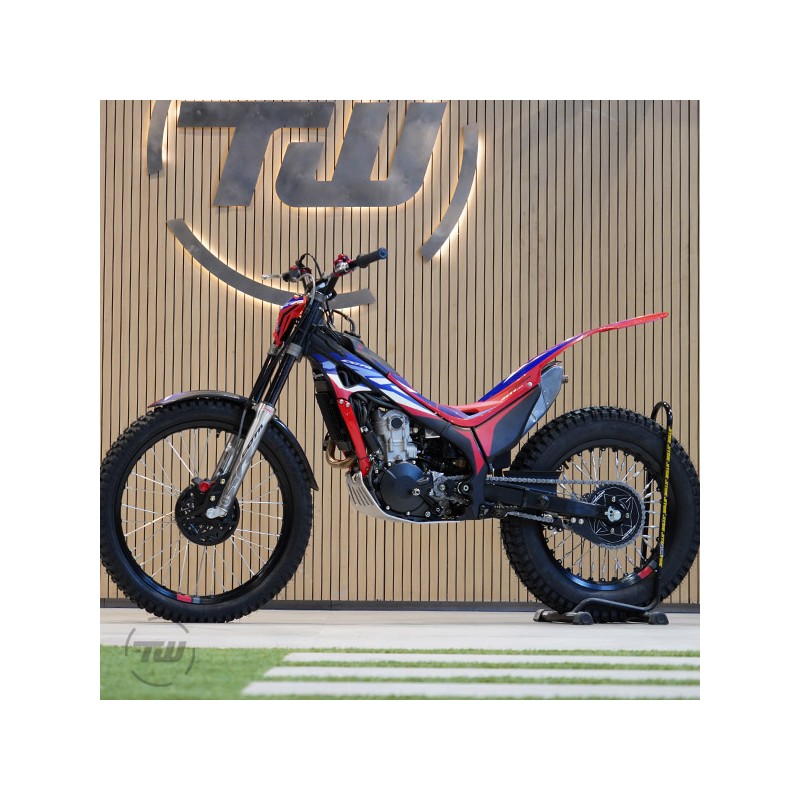

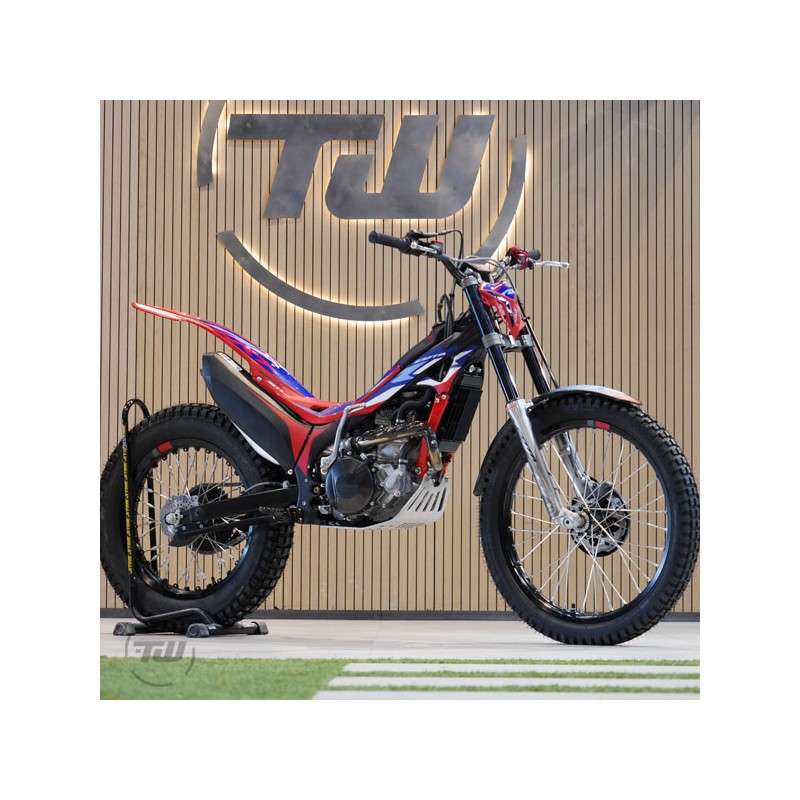

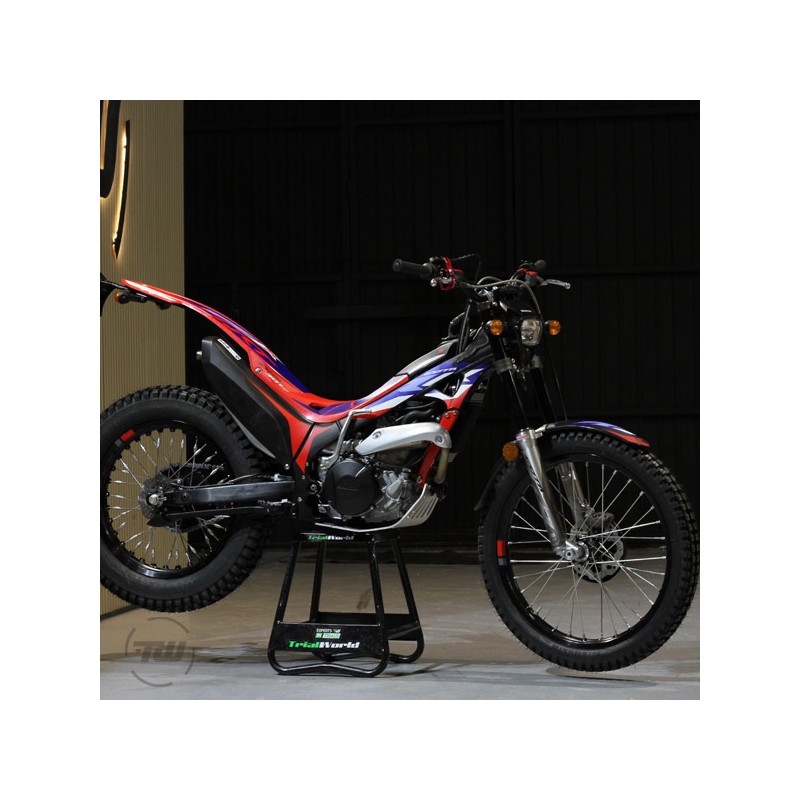

Montesa cota 301RR 2025

MONTESA COTA 4RT 301RR 2025

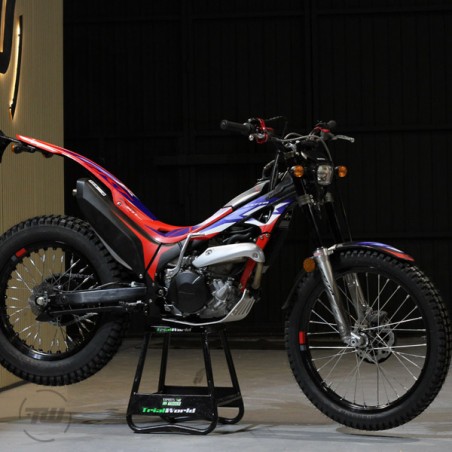

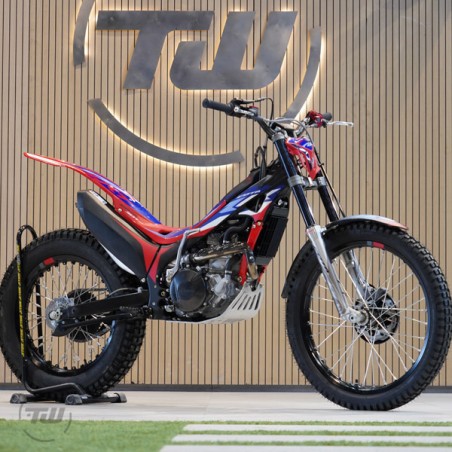

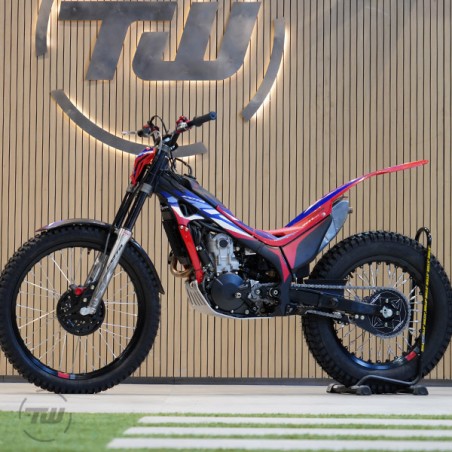

The Montesa Cota 301RR 2025 represents the maximum exponent of the range of trialof Montesa, conceived for high competition and developed from the experience in the World Championship. Its new edition comes with a groundbreaking design that combines the brand's heritage with technical innovation.

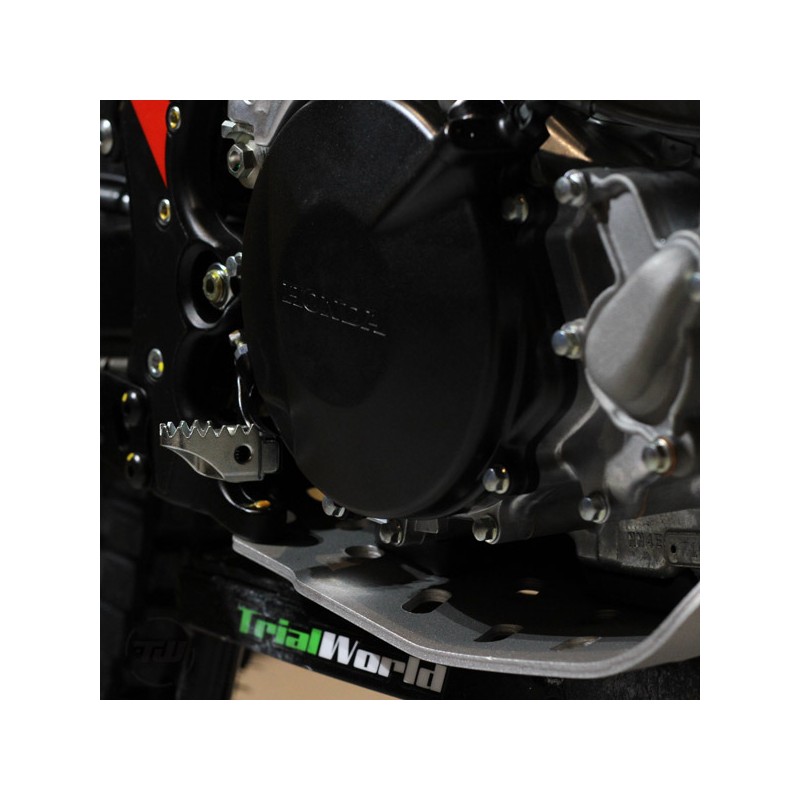

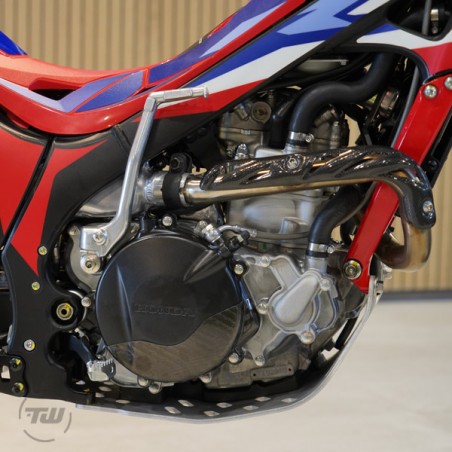

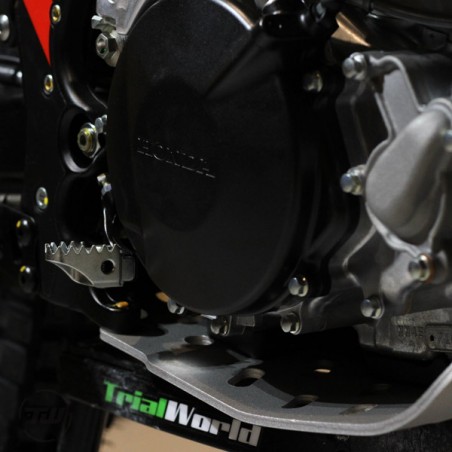

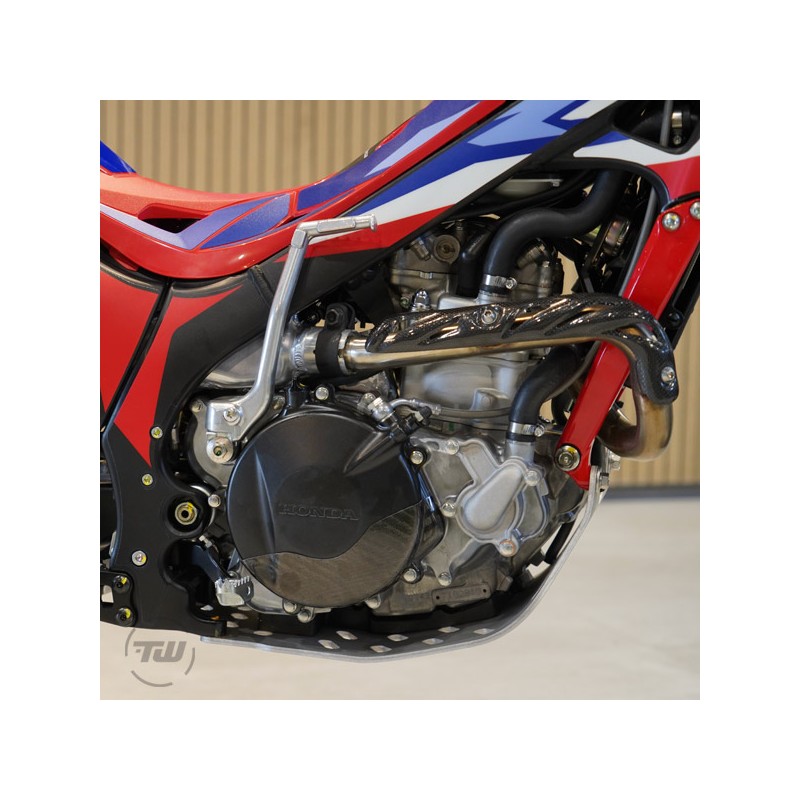

The engine is a 4-stroke, 4-valve, SOHC, liquid-cooled, single-cylinder, with a displacement of 298.4 cm³, compression ratio of 10.4:1 and internal dimensions of 81.5 x 57.2 mm. Fueled by PGM-FI electronic injection, it delivers strong and precise power, designed for demanding riders.

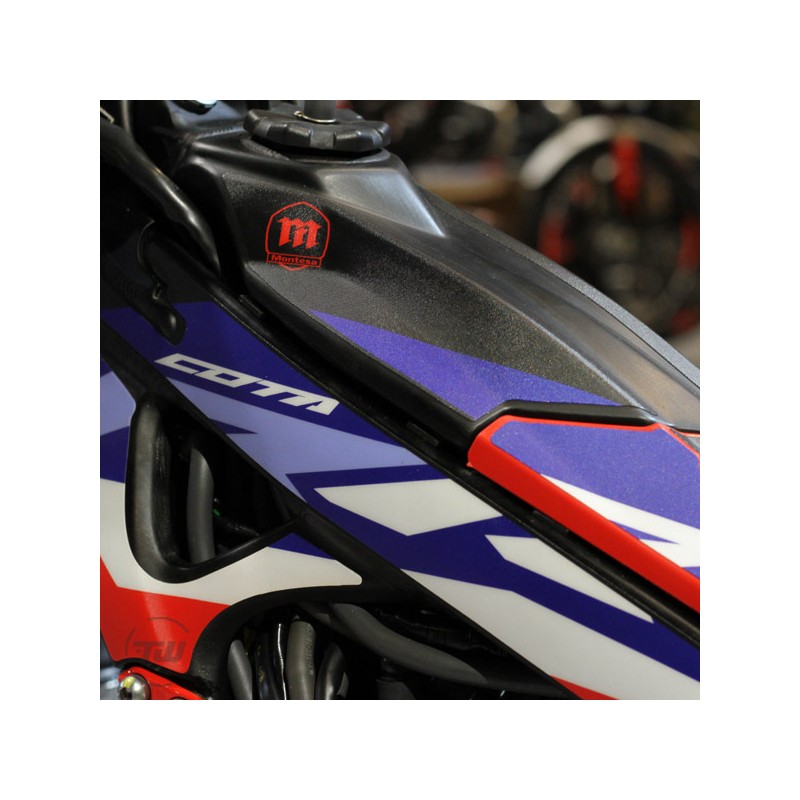

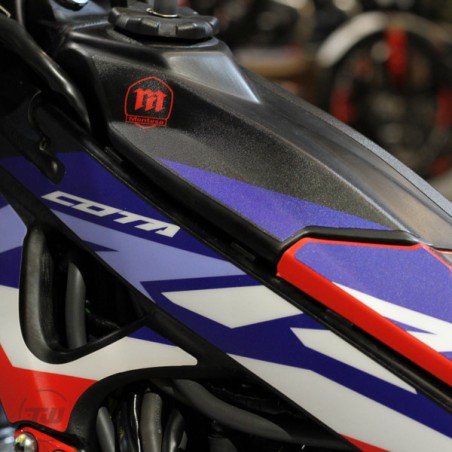

The chassis maintains the double aluminum beam structure, light and strong, with dimensions of 2,020 x 840 x 1,135 mm, seat height of 665 mm and ground clearance of 310 mm. The fuel tank, also made of aluminum, offers 1.8 liters of capacity.

On the chassis, the 301RR is equipped with first-class suspension: 39 mm telescopic fork Showa, adjustable in preload and rebound, with 167 mm of travel, and a rear Pro-Link® system with shock absorber Showa, adjustable, with 170 mm of travel. The precision of this set-up guarantees maximum confidence in any type of area.

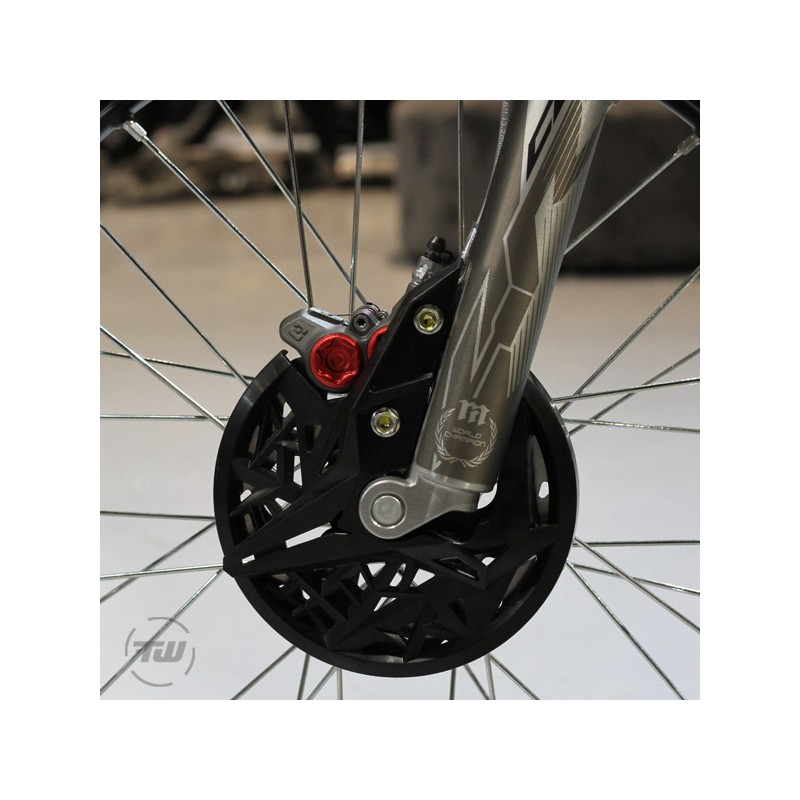

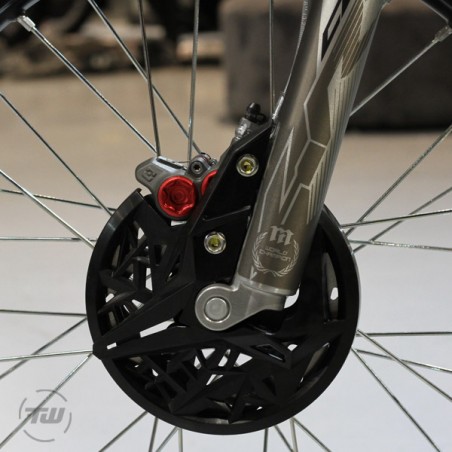

The braking system consists of a 185 mm front disc with 4-piston caliper and sintered pads and a 150 mm rear disc with dual pistons, offering bite and control at the highest level. It is completed with Michelin Competition tires, mounted on aluminum rims with lightweight machined hubs, designed to withstand the demands of competition.

New features include a set of machined aluminum fork posts, a new redesigned radiator, solid crown, and details that reinforce its "Race Ready" character. All this makes for a bike that is ready to race at the highest level, straight from the dealer.

The Montesa Cota 301RR 2026 is undoubtedly the choice of riders looking for the ultimate expression of modern trial: a machine fine-tuned to perform in the most demanding areas of the championship

TECHNICAL DATA MONTESA COTA 4RT 301RR 2026

Engine and Performance
Type: Single cylinder, 4-stroke, 4-valve, SOHC, liquid cooled
Displacement: 298.4 cm³
Bore x stroke: 81.5 x 57.2 mm
Compression ratio: 10.4 : 1
Fuel: PGM-FI electronic injection (28 mm body)
ECU mapping: Dual mapping selectable from handlebars

Chassis and Dimensions
Frame: Aluminum double beam
Dimensions (L x W x H): 2,020 x 840 x 1,135 mm
Wheelbase: 1,320 mm
Launch angle: 24.5°
Seat height: 677 mm
Ground clearance: 310 mm
Weight: 73 kg (dry) / 77 kg (with fluids)
Fuel tank: 1.8 liters

Suspensions
Front: Fork Showa Ø39 mm, adjustable in preload and rebound, travel approx. 158 mm
Rear: Pro-Link® system with shock absorber Showa adjustable, travel 170 mm

Brakes
Front: Hydraulic disc Ø185 mm, 4-piston caliper, sintered pads
Rear: Hydraulic disc Ø150 mm, 2-piston caliper

Wheels and Tires
Rims: Aluminum with machined hubs
Front tire: Michelin 2.75 x 21
Rear tire: Michelin 4.00 x 18

Other Details
Anodized aluminum machined seatpost
FIM homologated solid rear crown
Lightweight aluminum exhaust
Optional carbon kit available
