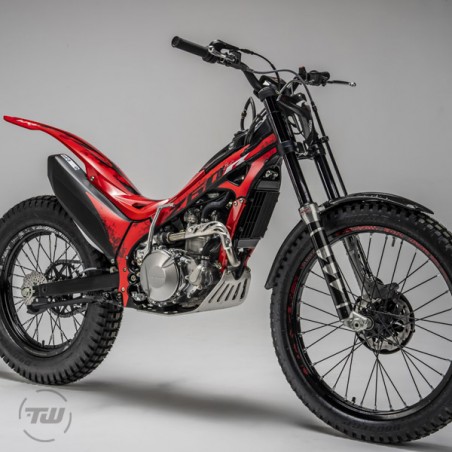

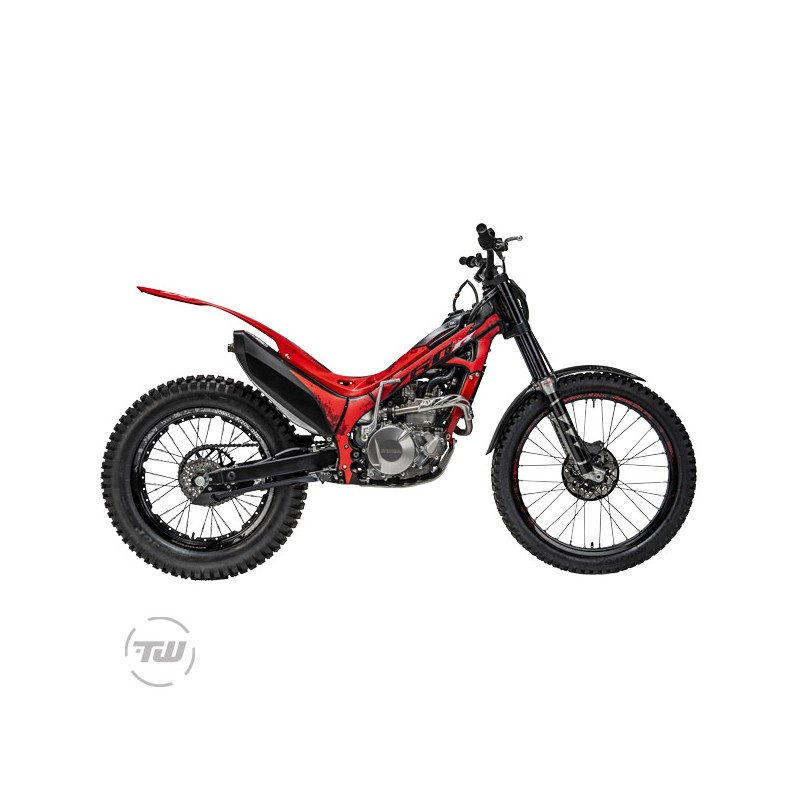

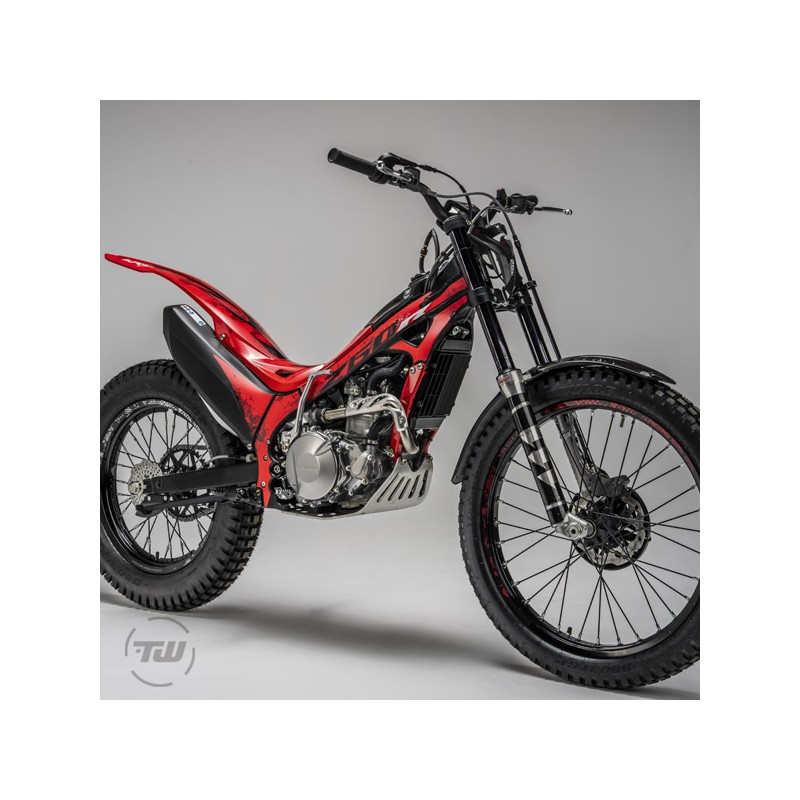

Montesa cota 4RT 260R 2026

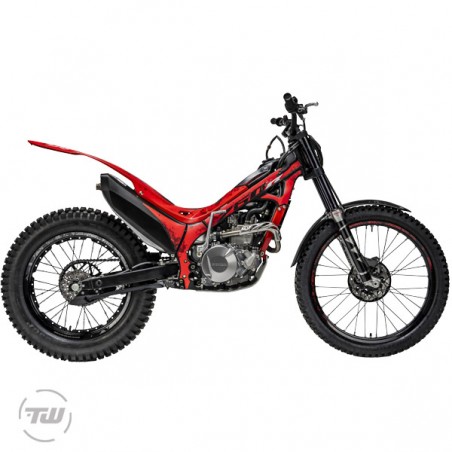

Montesa Cota 260R 2026: Racing Spirit

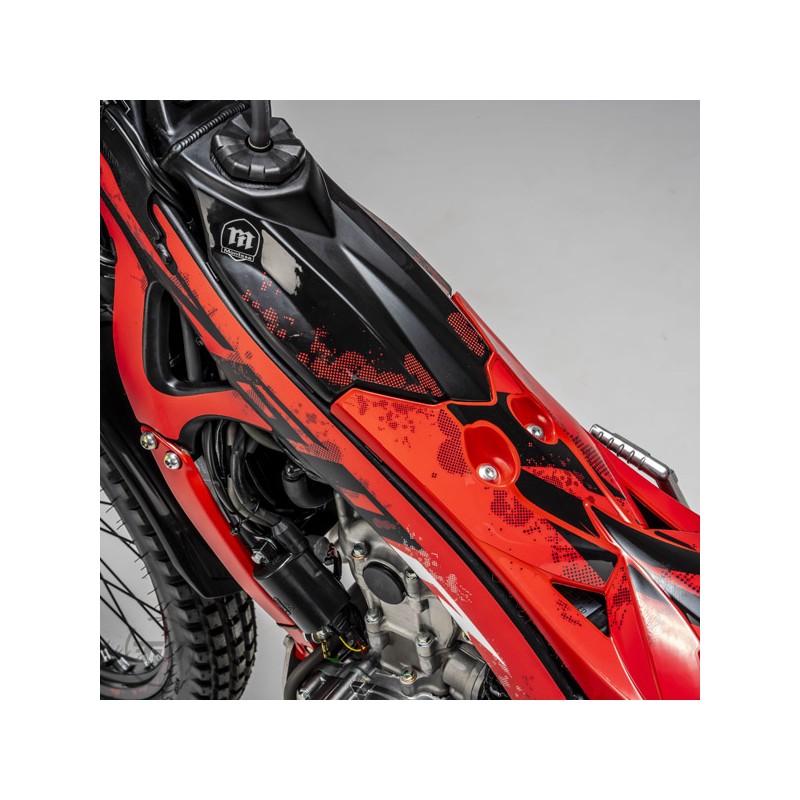

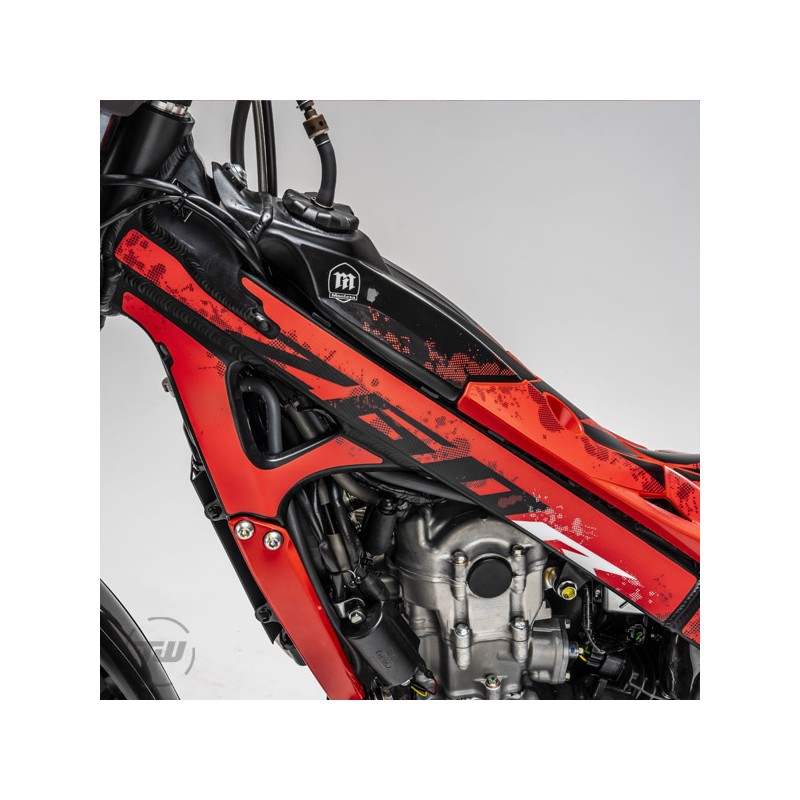

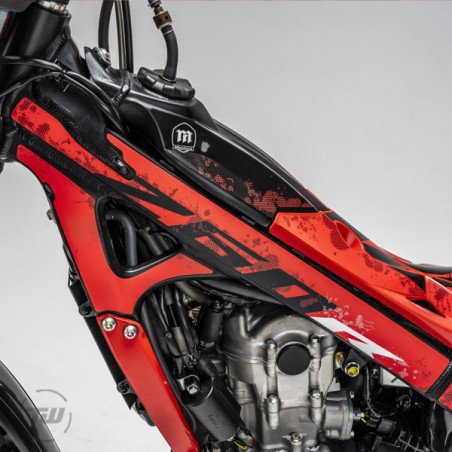

The new Montesa Cota 260R 2026 reaffirms the brand's competitive DNA with a balanced proposal between high performance and manageability. Its image is updated with an innovative and dynamic Montesa red decoration, accompanied by technical details that reinforce its sporty character.

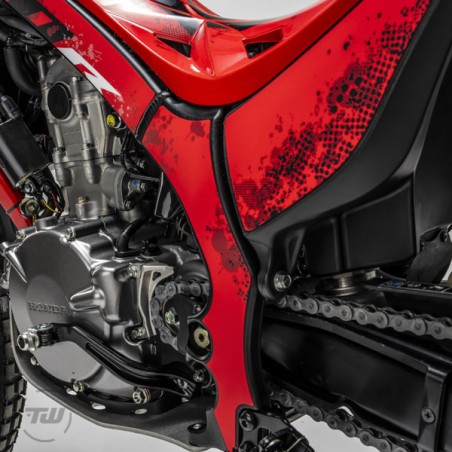

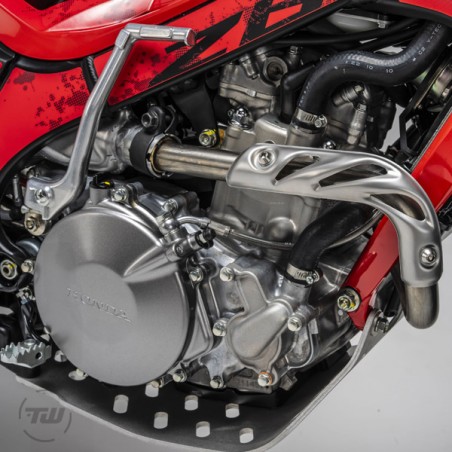

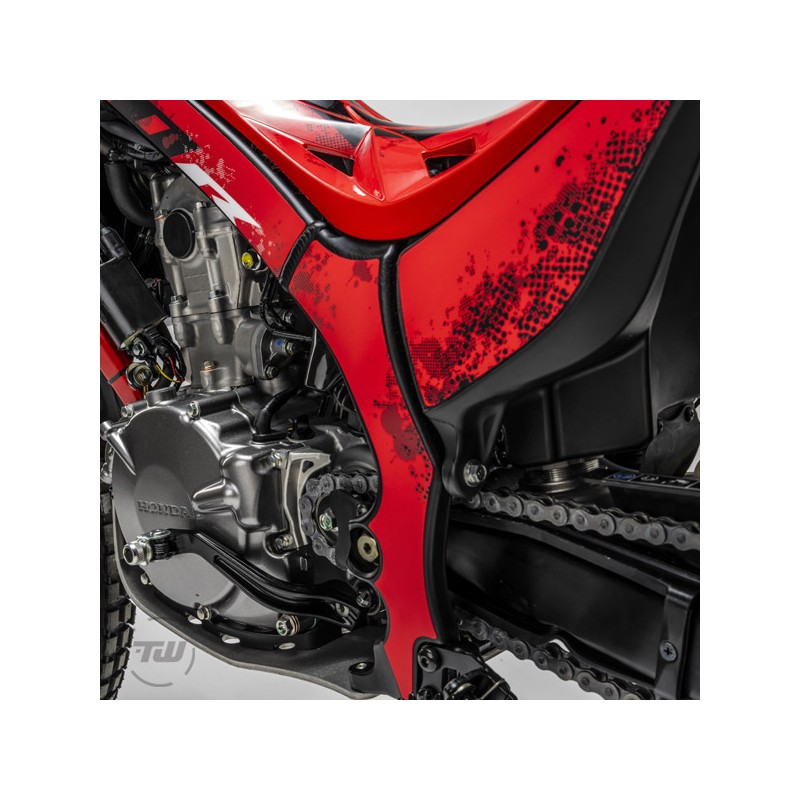

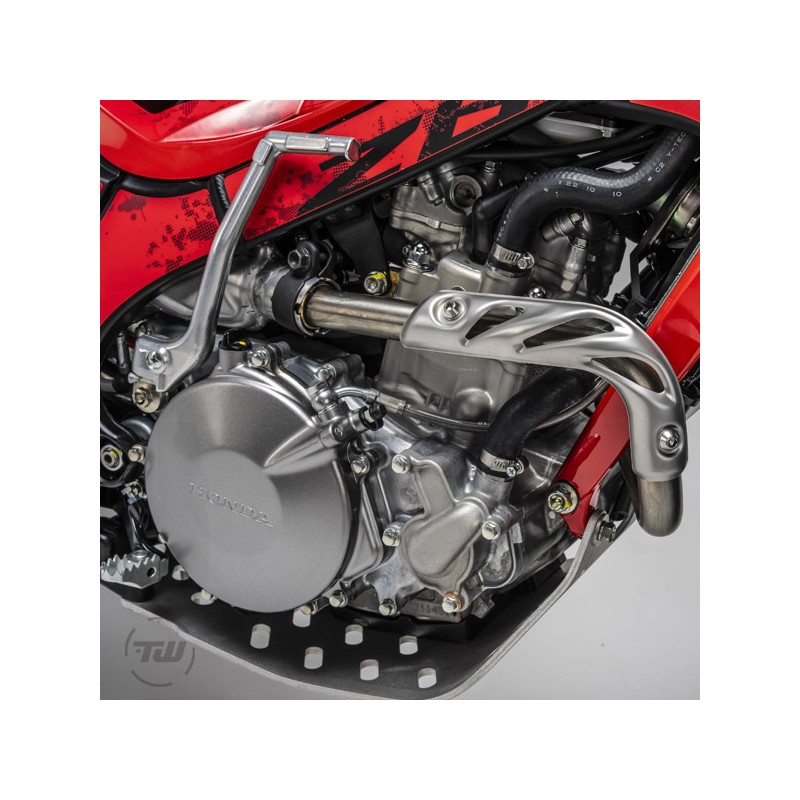

Mechanically, the Cota 260R is equipped with a single-cylinder, 4-stroke, 4-valve, SOHC, liquid-cooled engine with a displacement of 258.9 cm³ and a compression ratio of 10.5:1. Bore and stroke are 78 x 54.2 mm, and power is supplied by a PGM-FI electronic injection system, ensuring a linear and precise response.

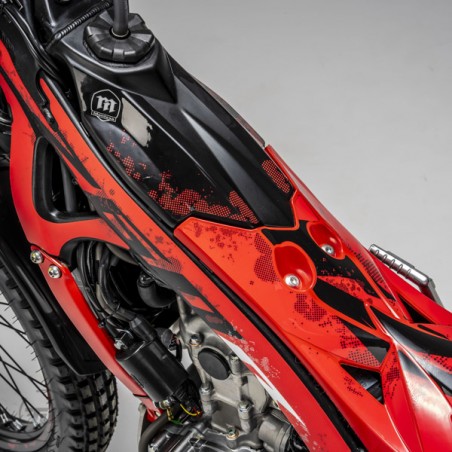

The chassis maintains the classic aluminum double beam, compact and lightweight, with dimensions of 2,020 x 840 x 1,135 mm, a ground clearance of 310 mm and a seat height of 665 mm. The fuel tank offers 1.8 liters of capacity, optimized for the high-end trial.

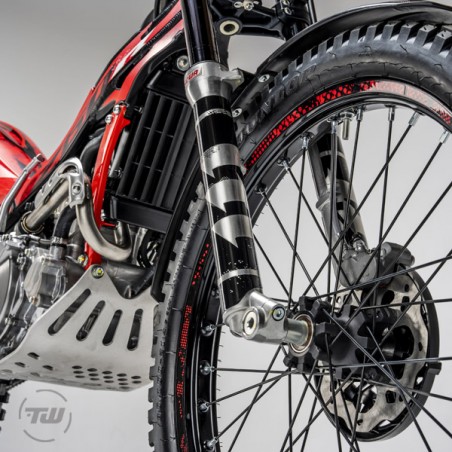

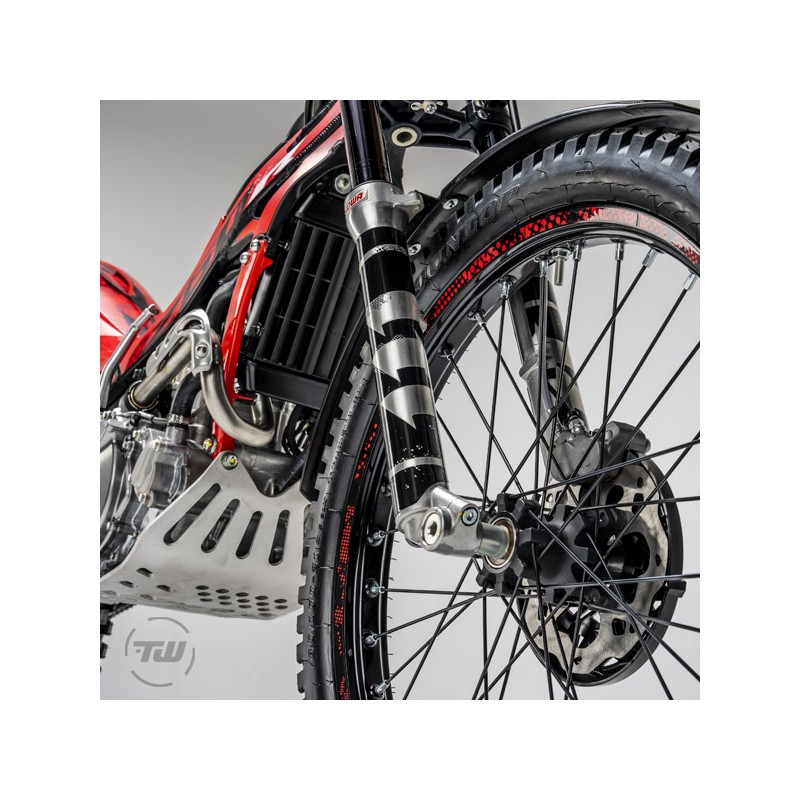

Suspensions are first-rate: a 39 mm telescopic fork Showa, adjustable in preload and extension, with 167 mm of travel, and a Pro-Link® rear system with shock absorber Showa, also adjustable, with 170 mm of travel.

The brakes are hydraulic discs: 185 mm front with 4-piston caliper and sintered pads, and 150 mm rear with dual pistons. It mounts Dunlop tires (80/100-21 front and 120/100 R18 rear), designed for maximum traction in technical areas.

Other highlights include an enlarged aluminum exhaust, a clutch with a smoother clutch configuration for improved feel, and the choice of Showa suspension and Dunlop tires, which reinforce its commitment to performance.

The Cota 260R 2026 consolidates itself as the perfect bike for those looking for Montesa tradition in a race-ready frame, with the reliability Honda and the unmistakable style of the brand.

Montesa Cota 4RT 260R 2026 - Technical Specifications

Montesa Cota 260R Engine & Performance

• Engine type: Single-cylinder, 4-stroke, 4-valve, SOHC, liquid-cooled (Euro 5+)
• Displacement: 258.9 cm³
• Bore × stroke: 78 × 54.2 mm
• Compression ratio: 10.5 : 1
• Fuel system: Electronic injection PGM-FI
• Ignition system: Digital transistorized with computerized control and electronic timing advance
• Starter: Lever start

Suspensions and Brakes Montesa Cota 260R

• Front suspension: 39 mm telescopic fork Showa, adjustable in preload, tension and compression, 158 mm travel
• Rear suspension: Shock absorber Showa with Pro-Link system, adjustable in preload and rebound, 170 mm travel
• Front brake: 185 × 3 mm hydraulic disc with 4-piston caliper and sintered metallic pads
• Rear brake: 150 × 3 mm hydraulic disc with dual-piston caliper and sintered metal pads

Wheels and Tires Montesa Cota 260R

• Front tire: Dunlop 80/100-21
• Rear tire: Dunlop 120/100 R18
• Rims: Aluminium rims with spokes (front and rear)

Dimensions and Weight Montesa Cota 260R

• Launch Angle: 24° 34
• Dimensions (L × W × H): 2 020 × 840 × 1 135 mm
• Frame type: Double aluminum beam
• Tank capacity: 1.8 l
• Ground clearance: 335 mm
• Seat height: 650 mm
• Trailering: 63 mm
• Wheelbase: 1 320 mm

Transmission Montesa Cota 260R

• Clutch: Multidisc in oil bath with coil springs
• Final drive: Chain
• Gearbox: 5 speed

Electronics Montesa Cota 260R

• Ignition system: Digital electronic
