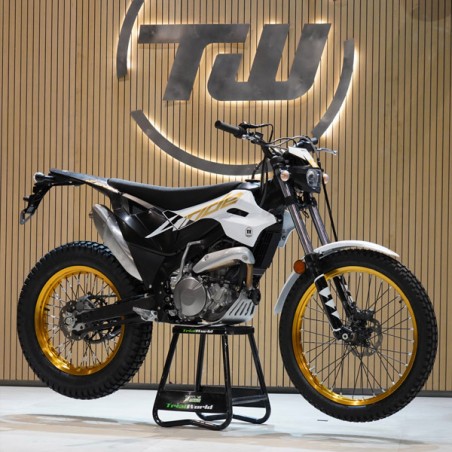

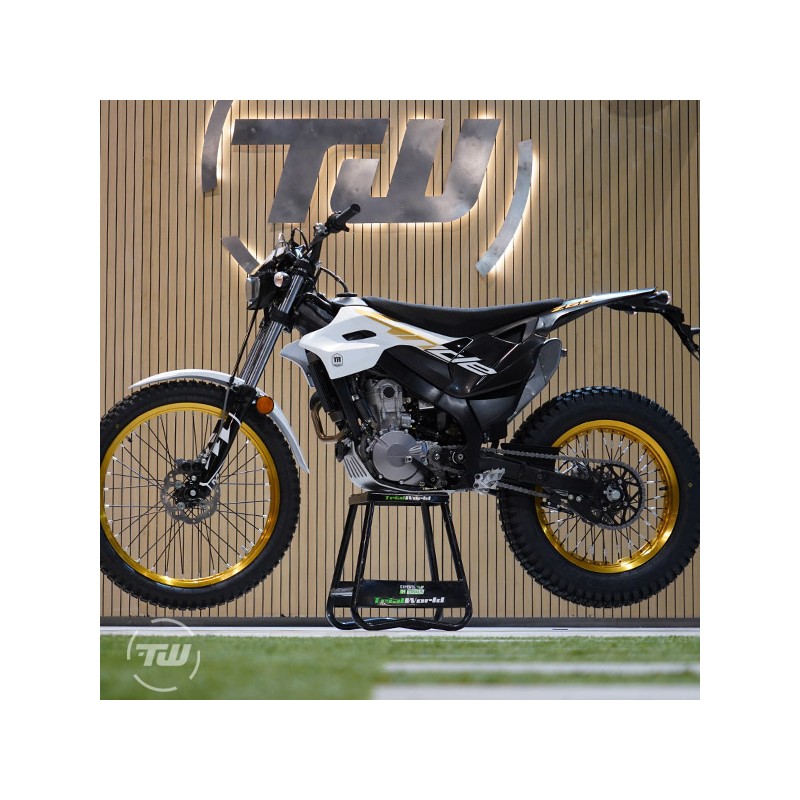

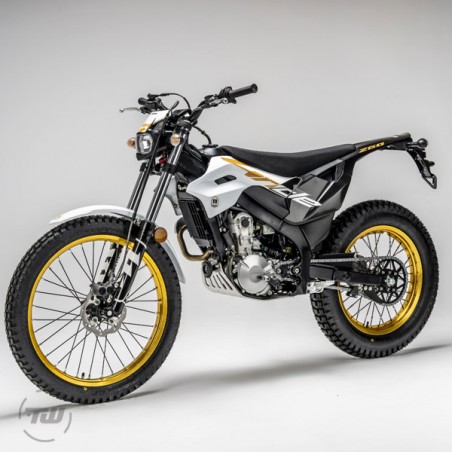

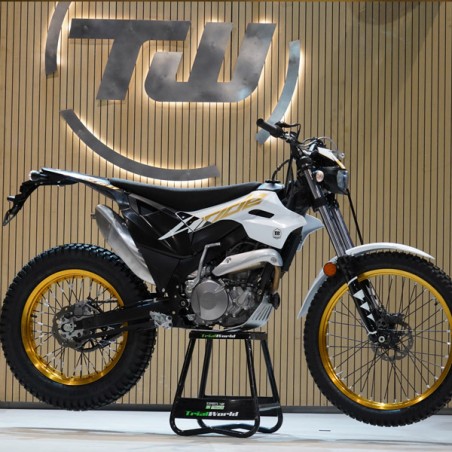

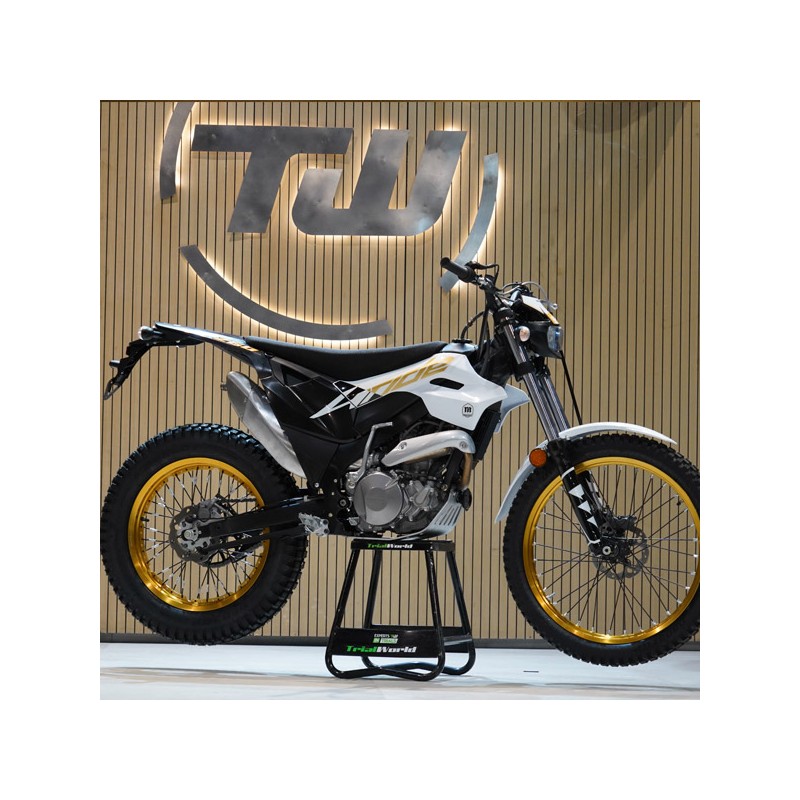

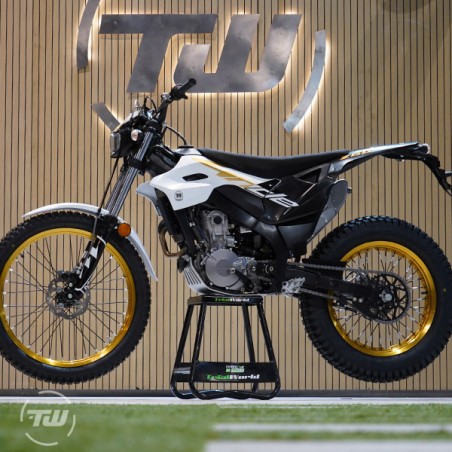

Montesa 4RIDE 260R 2026

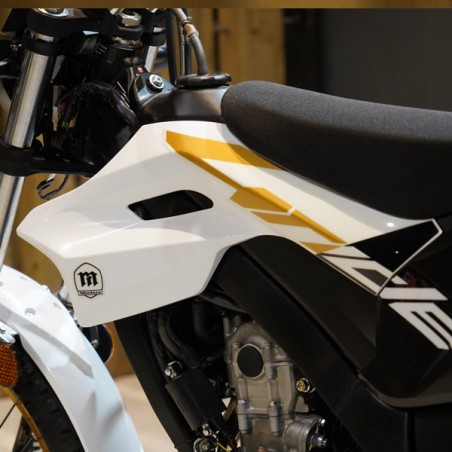

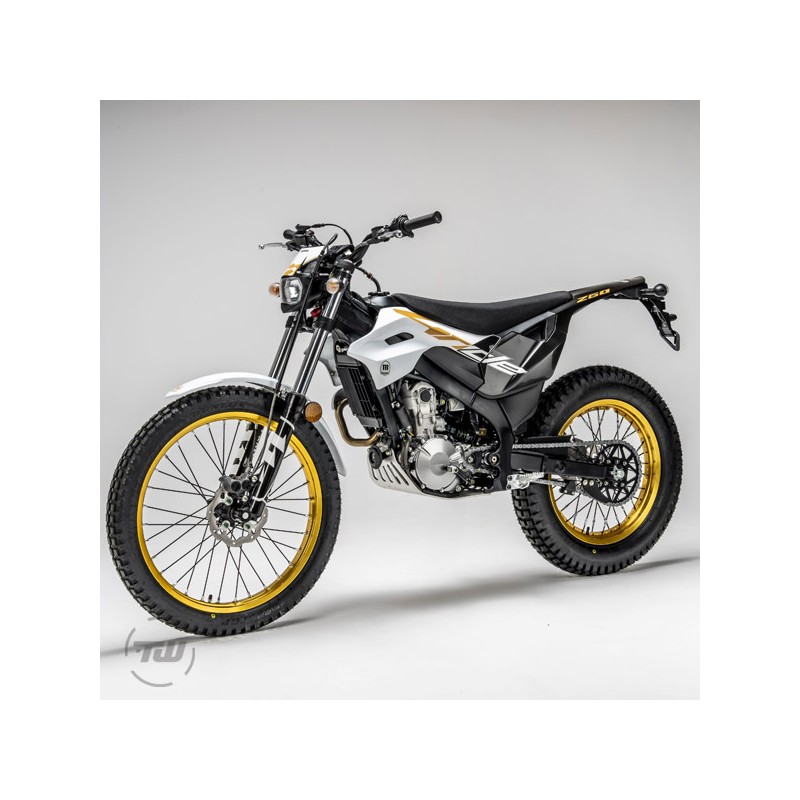

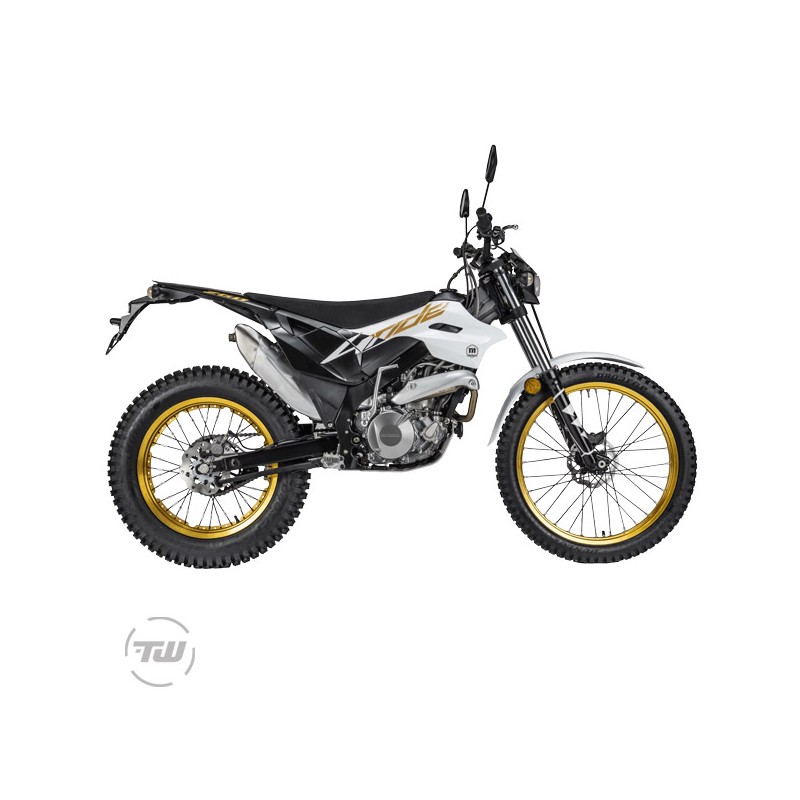

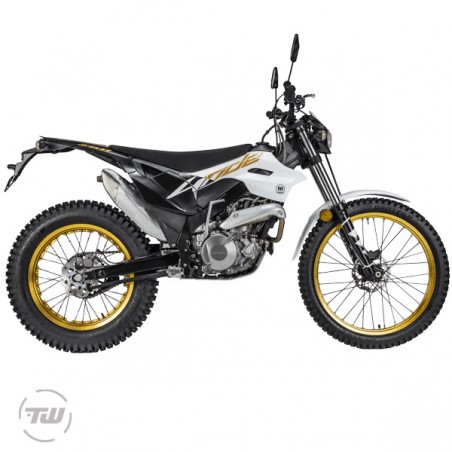

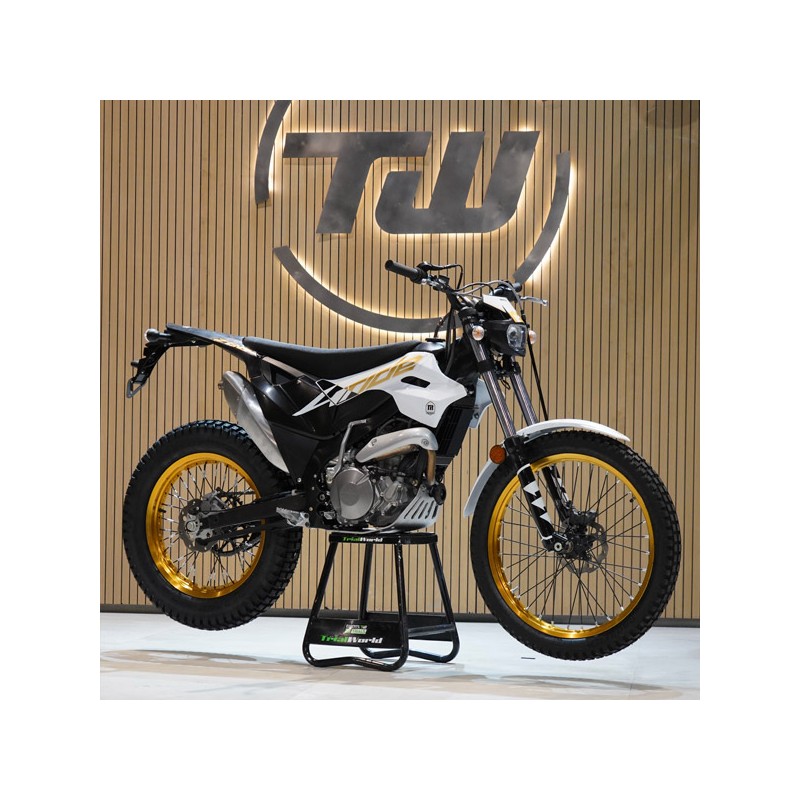

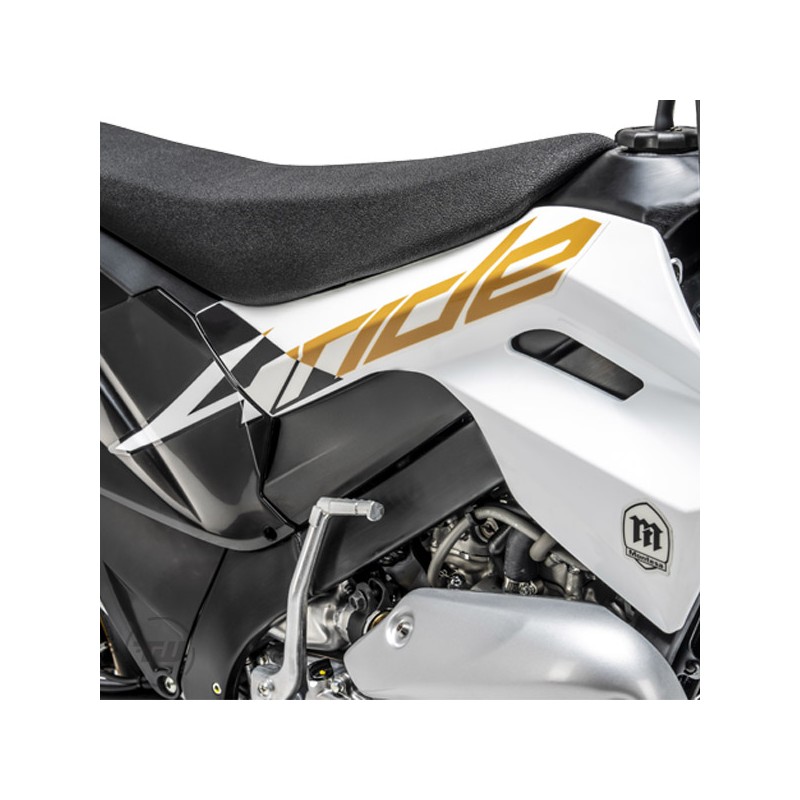

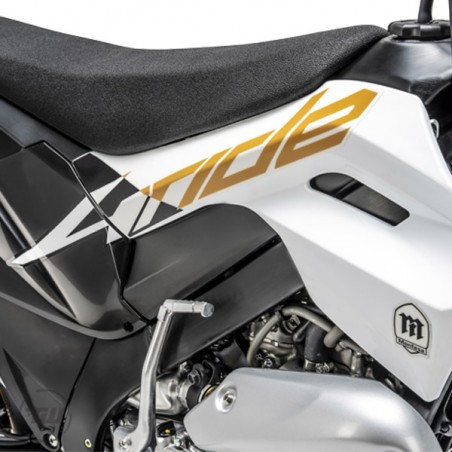

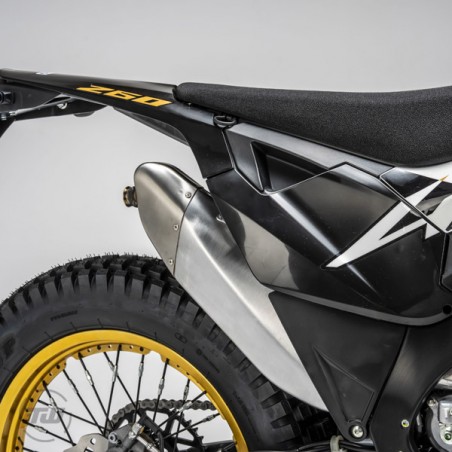

The Montesa 4RIDE 2026 has been revamped for those looking for a versatile bike that combines the agility of the trialwith the versatility of a light trail bike. Its design is updated with a modern decoration and gold anodized rims, which provide an exclusive and differentiating touch.

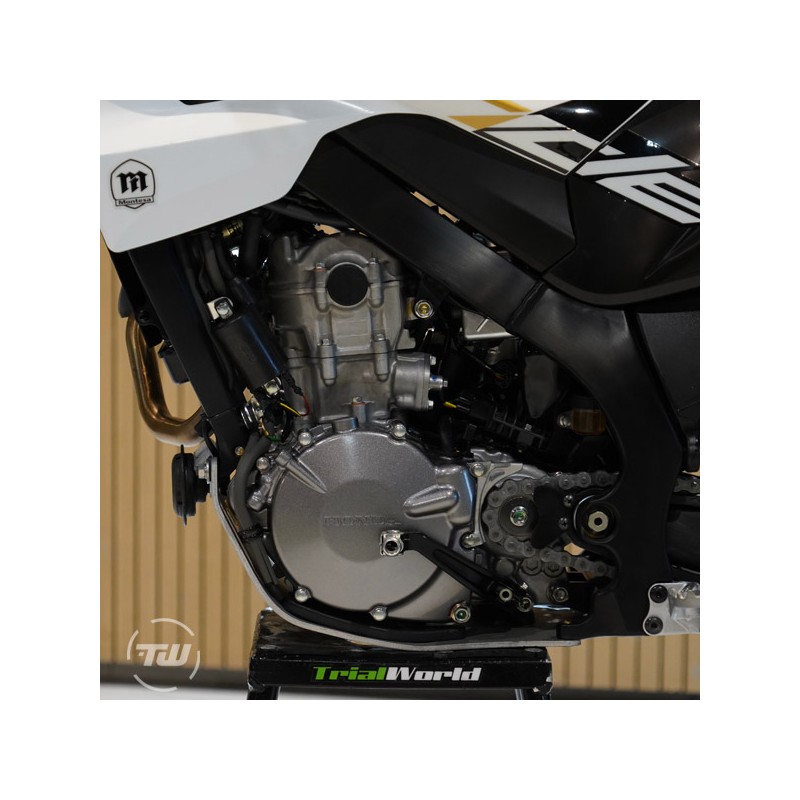

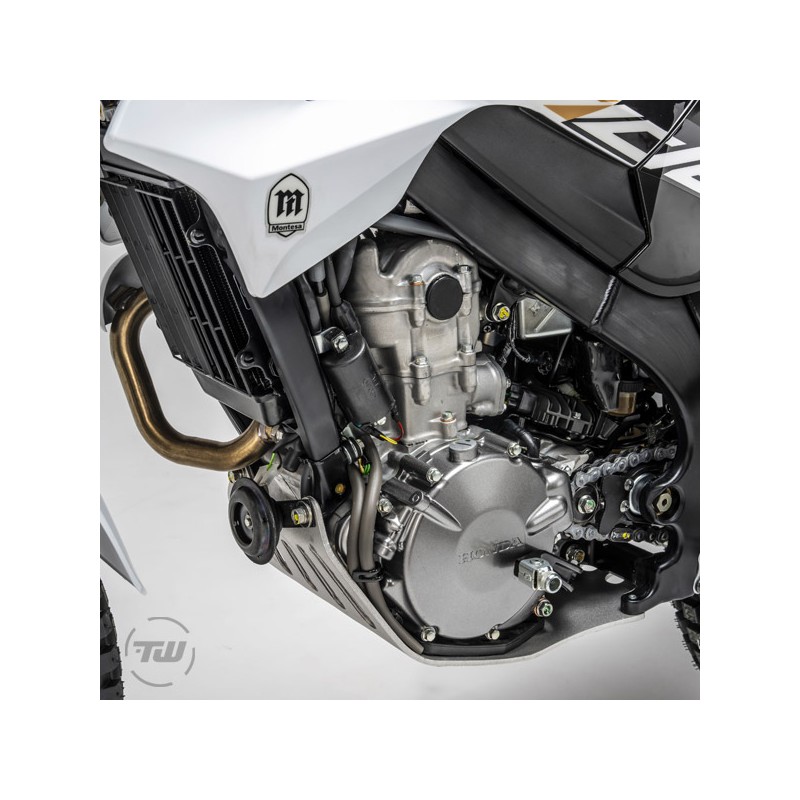

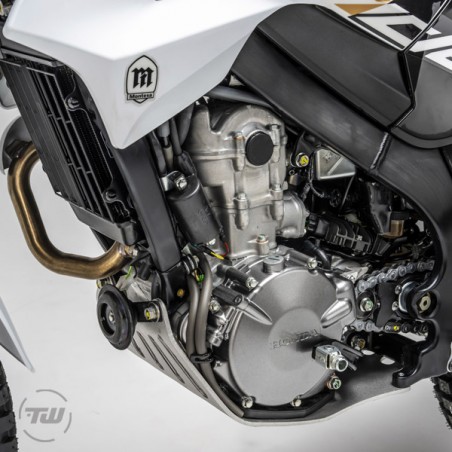

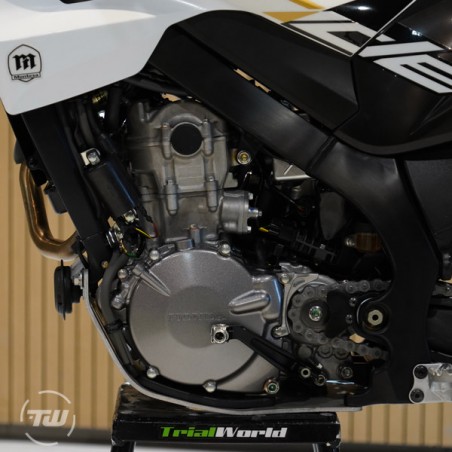

The engine maintains the Montesa-Honda essence: a 4-stroke, 4-valve, SOHC, liquid-cooled single-cylinder with 258.9 cm³, 10.5:1 compression ratio and internal dimensions of 78 x 54.2 mm. The fuel supply is managed by PGM-FI electronic injection, ensuring smooth and efficient delivery throughout the entire range of use.

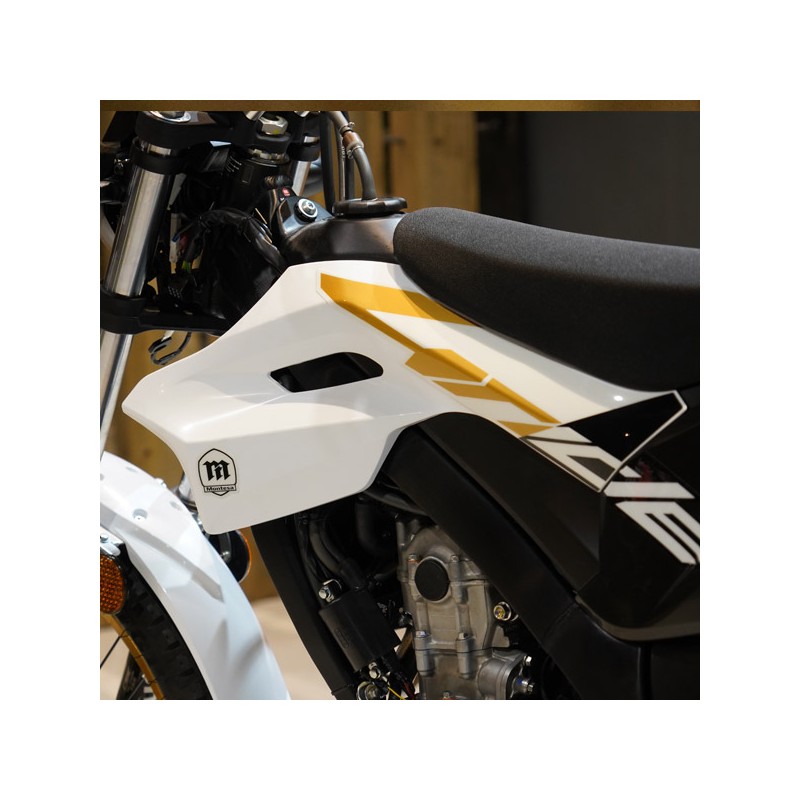

The chassis is built in aluminum double beam, with dimensions of 2,020 x 840 x 1,135 mm and a wheelbase of 1,335 mm. The seat height is 905 mm, clearly higher than the Cota from trial, which favors enduro-trail type riding. The fuel tank increases to 4.3 liters, significantly increasing the range compared to the purely trial versions.

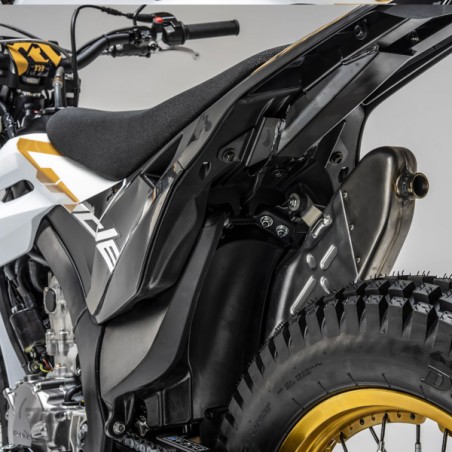

The suspensions are different from the Cota range: at the front, a 39 mm fork Ollé adjustable in preload and extension, with 190 mm of travel, and at the rear, a Pro-Link® system with R16V shock absorber, adjustable, with 170 mm of travel. A set designed to absorb with solvency both areas of trialand longer trails.

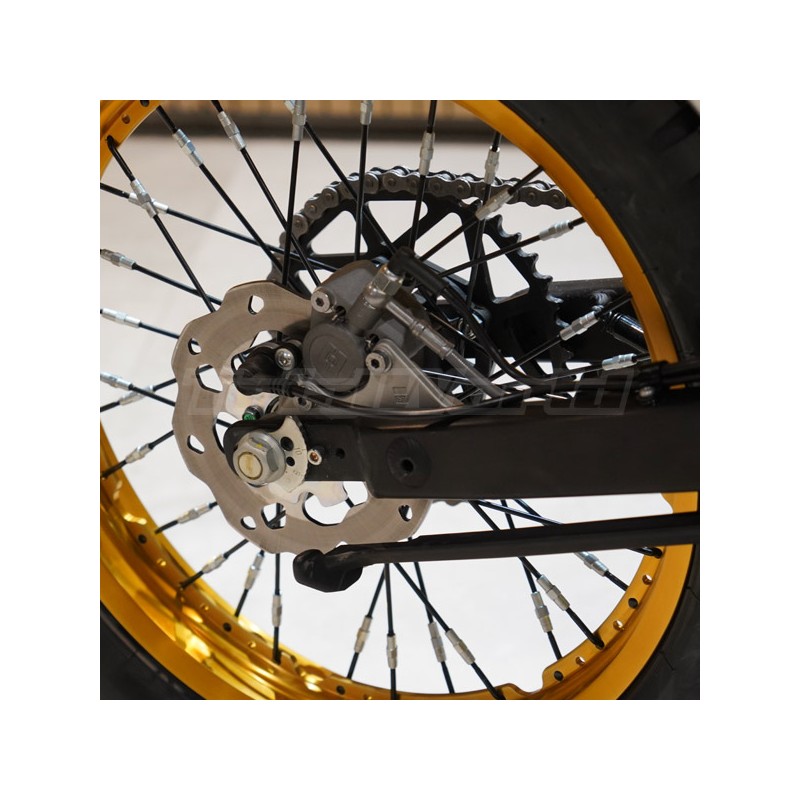

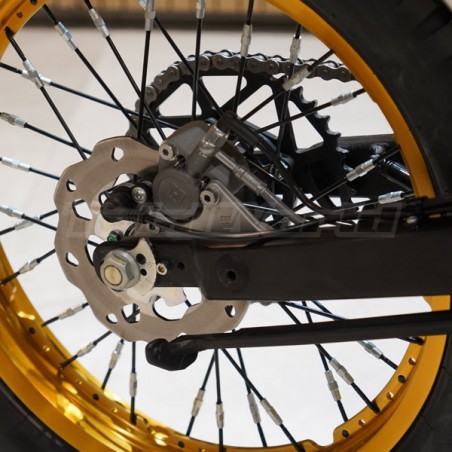

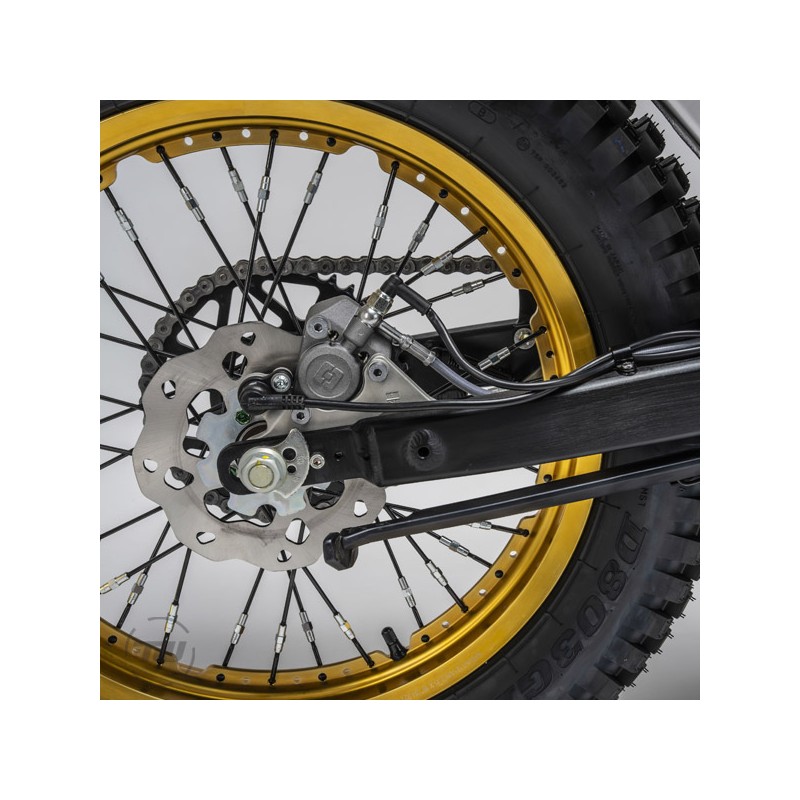

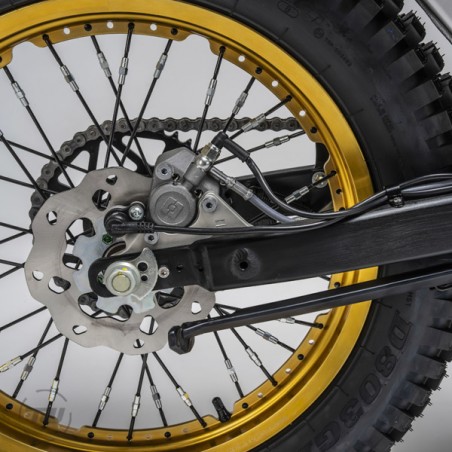

The braking system is also reinforced: 185 mm front disc with 4-piston Monobloc caliper and 183 mm rear disc with double piston, both with sintered metal pads. The tires chosen are Dunlop 80/100-21 front and 120/100 R18 rear, balancing grip and versatility in different terrains.

With a dry weight of 83 kg, the Montesa 4RIDE 2026 is the ideal companion for those looking for a light, reliable and versatile bike, capable of tackling the most demanding technical areas to longer excursions with total confidence.

Montesa Cota 4RIDE 2026 - Technical Specifications

Montesa 4Ride 2026 Engine and Performance

• Engine type: Single-cylinder, 4-stroke, 4-valve, SOHC, liquid-cooled
• Displacement: 258.9 cm³
• Bore x stroke: 78 × 54,2 mm
• Compression ratio: 10.5 : 1
• Fuel feed: PGM-FI electronic injection
• Transistorized digital ignition system with electronic control
• Starter: Lever start
• Throttle body diameter: 28 mm

Transmission Montesa 4Ride 2026

• Clutch: Multi-plate in oil bath with coil springs
• Clutch actuation: Hydraulic
• Gearbox: 5-speed, manual
• Final drive: Chain

Electrical parts Montesa 4Ride 2026

• Headlight: H4 bulb (12 V, 35 W road/cross)

Suspensions and Brakes Montesa 4Ride 2026

• Front suspension: 39 mm fork Ollé, adjustable in preload and extension, 190 mm travel
• Rear Suspension: Pro-Link system with R16V shock, adjustable, 170 mm travel
• Front brake: 185 mm hydraulic disc, 4-piston caliper
• Rear brake: 183 mm hydraulic disc, 2-piston caliper

Wheels and Tires Montesa 4Ride 2026

• Front tire: Dunlop 80/100-21
• Rear tire: Dunlop 120/100 R18

Dimensions and Weight Montesa 4Ride 2026

• Caster angle: 23°
• Dimensions (L × W × H): 2,035 × 835 × 1,160 mm (2,035 × 835 × 1,160 mm)
• Wheelbase: 1 335 mm
• Tank capacity: 4.3 liters
• Seat height: 905 mm
• Ground clearance: 325 mm
• Weight: 82 kg
