Clean Trials
presents a new frame made entirely of carbon fiber, which will bear the K1 initials and will be available in both 20″ and 26″. It will be the trial bike that this season will be ridden in the Elite 20″ category by Abel Mustieles, Benito Ros and Sebas Ruiz in national and international competitions.
There is also a variant on a large wheel: the Clean Trials K1 26″.
The milestone is that this is the first carbon frame made in this size on a trial bike.
The new Clean Trials K1 is the first carbon bike with an asymmetrical BB30 in Trial. It is born from the X2 and is announced to weigh approximately 6,500 grams for a complete bike already assembled.

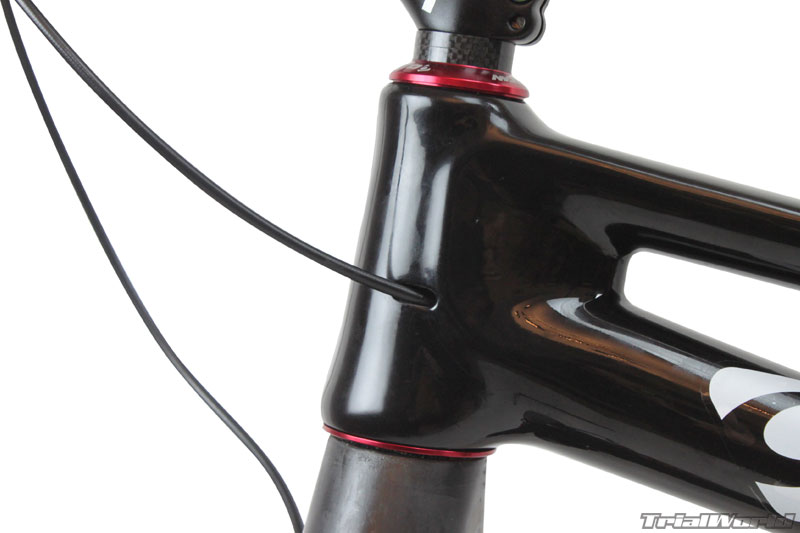

One of the great novelties of this new chassis is that the travel of the rear brake hose goes through the interior of the chassis. In this way, a slimmer and more effective line is achieved, while the hose is more protected.
Price Clean Trials K1 carbon 20″: 2.643€ + vat
The approximate price of the Clean Trials K1 is €3,000

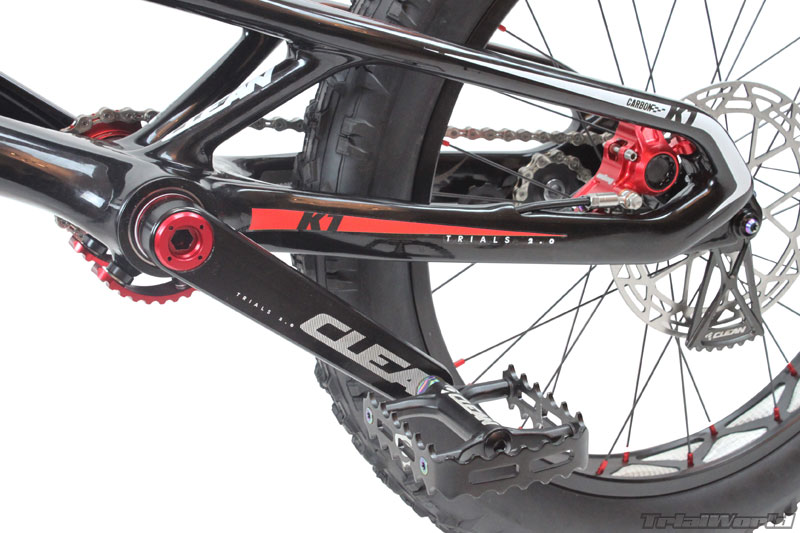

PHOTO GALLERY CLEAN TRIALS K1 20″ CARBON
THE OPINION OF ABEL MUSTIELES
“Carbon in Trial has always been a somewhat taboo subject, with a few exceptions. Our 20″ has the best carbon you can find and the 26″ version is a milestone in the specialty, as there is no precedent. It has very innovative solutions: the brake calipers are integrated to avoid shocks and offer a more innovative design, the carbon is high modulus with great rigidity and at the same time very light, with which we will have the lightest bicycles on the market. The fork, on the other hand, is tapered and provides more rigidity. The freewheel is splined, rather than threaded, and the tensioner is integrated. It was born as a result of curling the curl, of looking for the best for the highest competition and applying it to the market.”
TECHNICAL CHARACTERISTICS CLEAN TRIALS K1 CARBON 20″
> First carbon bike with asymmetrical BB30 in Trial
> Integrated chain tensioner
> Inner hoses

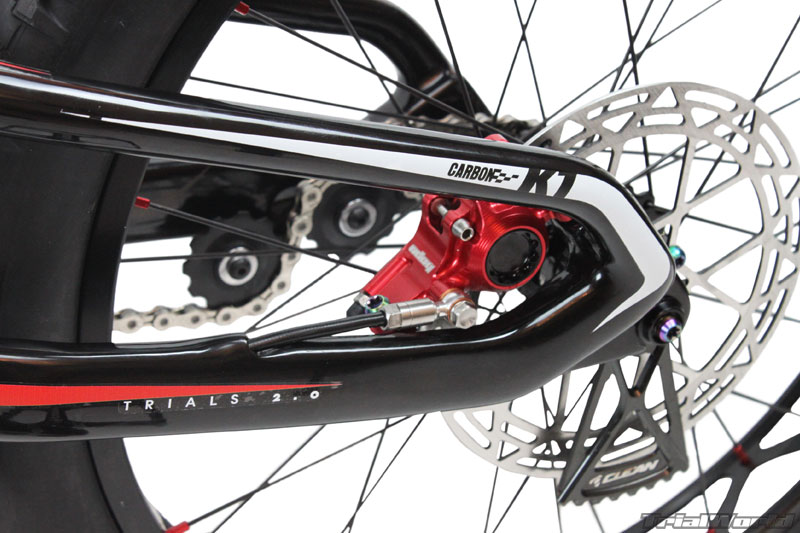

> Internal brake caliper to prevent shocks.
> Frame: Clean K1 Carbon Fiber
> Fork: Clean Carbon Fiber

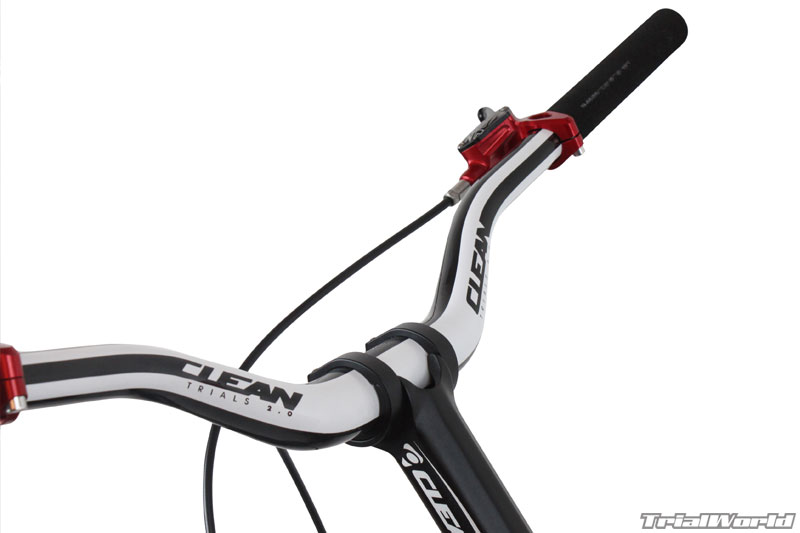

> Handlebar: Clean Carbon Fiber 103
> Fists: Clean extra-fine foam
> Power: Clean 152 x 31.6º
> Address: Clean Tapered. Superlight. Semi Integrated
> Bushings: Clean Cone. 100mm front, 116mm rear
> Brakes: Hope Trial Zone / Clean T13
> Discs: Clean RS 160mm + 162.5mm

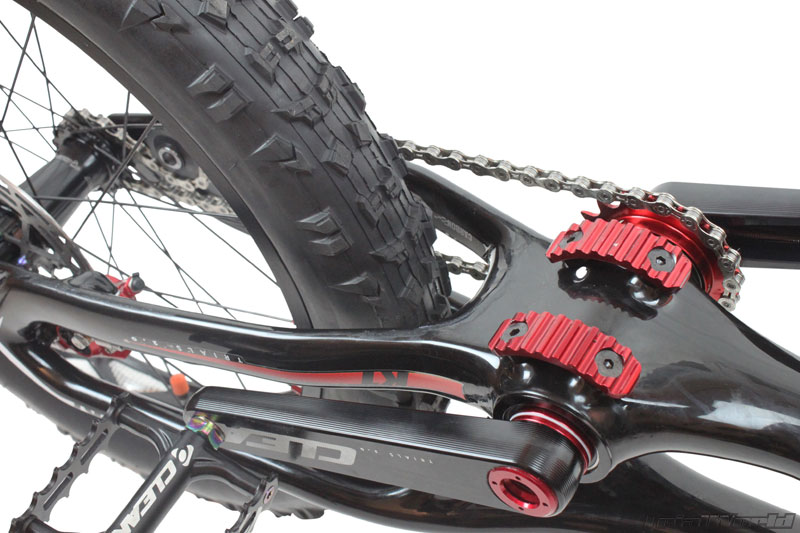

> Bottom bracket: Clean 3P Crankset. Axle 30mm. Press Fit. Full CNC. 160mm
> Pedals: Clean Single Cage.
> Chain: KMC X9L
> Tensor: Built-in clean. 7075 CNC. 11T plastic wheels.
> Tires: Clean High Profile.
> Spokes: Super light steel
> Nipples: 16g Anodized Aluminum
> Freewheel: 135.9 18T. Shimano HG
> Fixed Sprocket: Clean 12T
> Front tyre: Monty Pro Race 20″
> Rear Tyre: Monty Pro Race 19″
> Front Camera: Maxxis Extralight
> Rear camera: Maxxis Extralight.
CLEAN TRIALS K1 20″ CARBON GEOMETRIES
> Overall length: 1005mm
> Bottom bracket height: +87mm
> Rear base: 350mm
> Steering angle: 72º
> Reach: 605mm
> Frame with tapered direction
