The new Clean Trials X2 20″ 2017 is one of the most important models in the Clean catalogue, although the new
carbon Clean Trials K1
undoubtedly captures all eyes. It features a new high-quality 6061 T6 + 7075 T6 aluminum frame and BB30 3P bottom bracket included, increasing stiffness to the maximum and improving weight and maintenance.

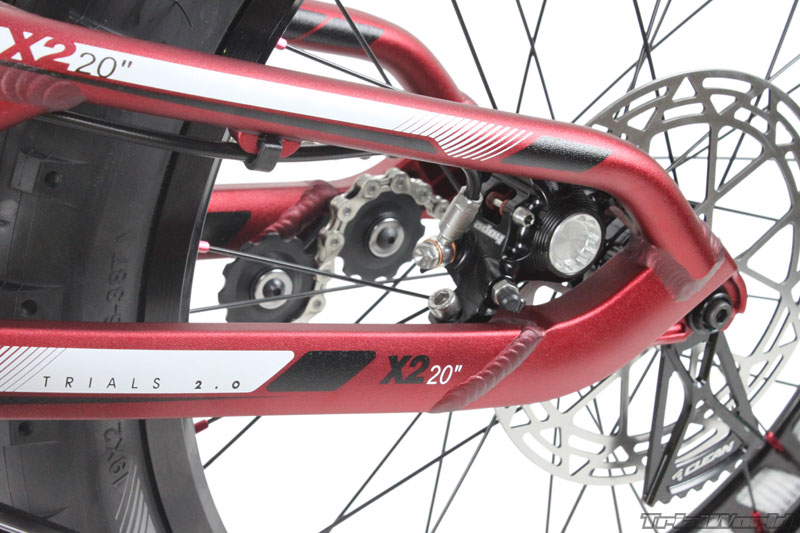

The new special dropouts allow the integration of the disc caliper between the tubes, being very protected from any blow. The right dropout allows the use of the integrated tensioner, always keeping the wheel in the same place, being perfect for the brake.

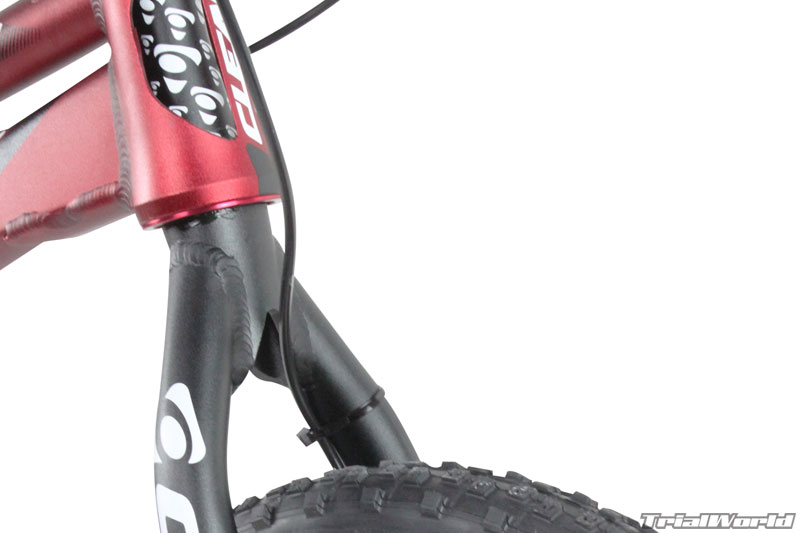

The headset is tapered, being 1 1/8″ at the top and 1/5″ at the bottom, improving stiffness and achieving considerable weight savings.
When it comes to brakes, there are two options. On the one hand, Hope Trial Zone disc brakes, combined with RS discs, or Clean T13 front brake combined with Clean pads and mounts.
The Clean X2 is the bike used by Joacim Nymann in competition.
The final weight of the Clean X2 20″ is only 7.9kg. and its approximate price of €2,290
PHOTO GALLERY CLEAN TRIALS X2 20″ 2017
FEATURES CLEAN TRIALS X2 20″
> Frame: Clean X2 20″, tapered design 1 1/8″ – 1.5″, made of 7005-T6 aluminum alloy, with mount for Post Mount disc brake or 4-bolt rim brake.
> Fork: Clean X2 20″, tapered design 1 1/8″ – 1.5″, made of 7005-T6 aluminum alloy, with mount for Post Mount disc brake or 4-bolt rim brake.

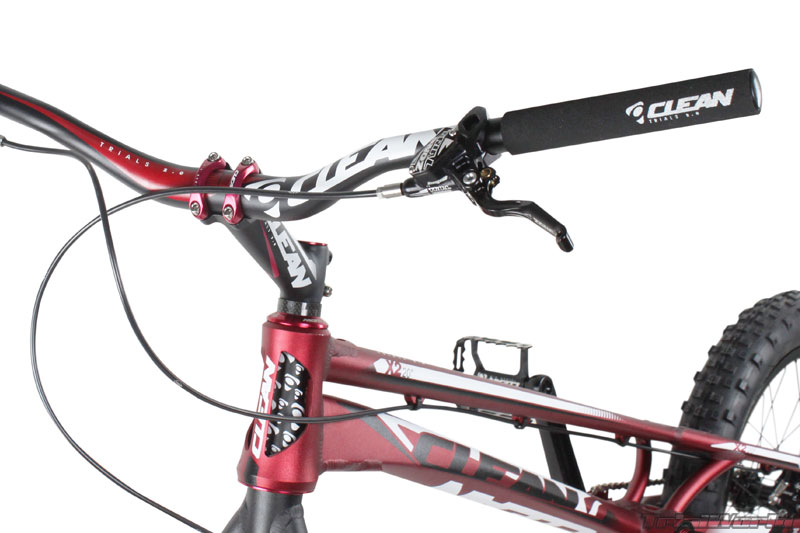

> Handlebar: Clean 7075 103mm, Oversized diameter 31.8mm
> Fists: Clean extra-fine foam
> Stem: Clean, with 145mm length and 25º incline, Oversized handlebar diameter of 31.8mm.
> Address: Clean Tapered. Superlight. Semi Integrated
> Bushings: Clean Cone. 100mm front, 116mm rear

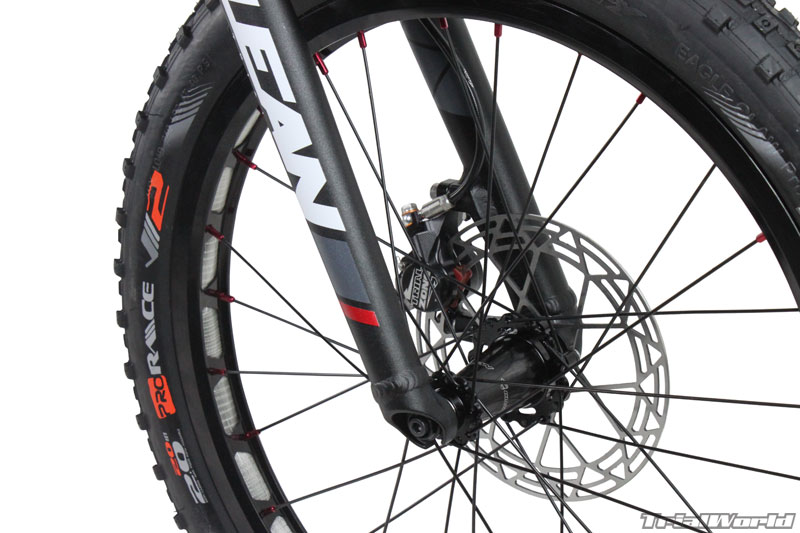

> Front Brake: Hope Trial Zone Post Mount or Clean T13
> Rear Brake: Hope Trial Zone Post Mount
> Disks: Clean RS 160mm + 162.5mm

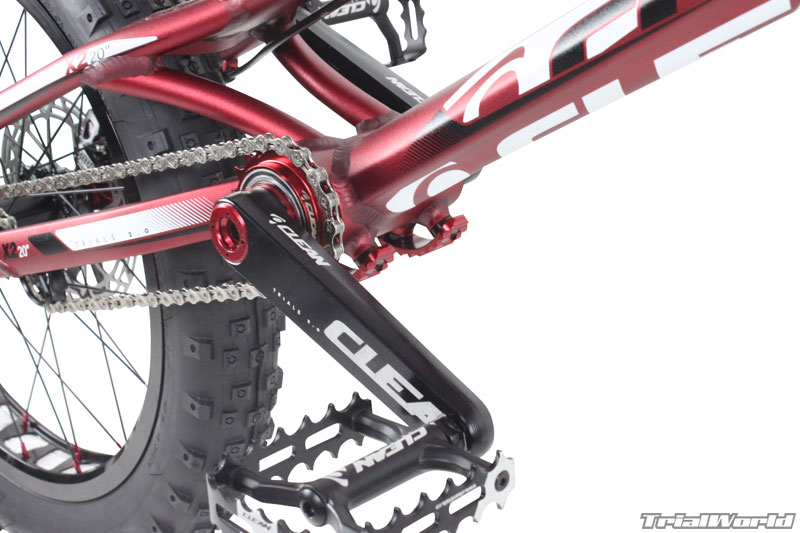

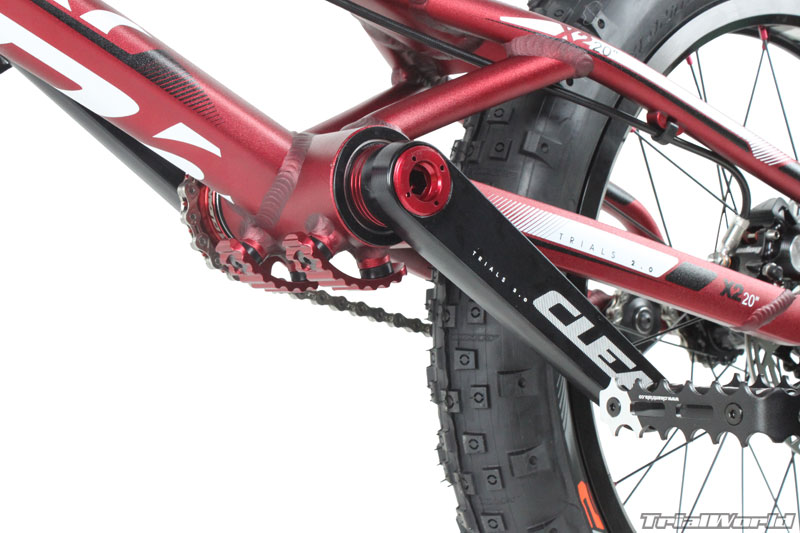

> Bottom bracket: Clean 3P Crankset. Axle 30mm. Press Fit. Full CNC. 160mm
> Pedals: Clean Mono-cage, 7075-T6
> Chain: KMC X9L
> Tensor: Built-in clean. 7075 CNC. 11T plastic wheels.
> Tires: Clean High Profile.
> Spokes: 1.8mm Black
> Nipples: 16g Aluminium Red
> Freewheel: Clean X2 135.9 18T, with 135 engagement points, 9 triggers and 18 teeth
> Fixed Sprocket: Clean 12T threaded, made of 7075-T6 aluminum alloy
> Front tyre: Monty Pro Race 20″
> Rear Tyre: Monty Pro Race 19″
> Front Camera: Maxxis Extralight
> Rear camera: Maxxis Extralight.
CLEAN TRIALS X2 20″ GEOMETRY
> Overall length: 1005mm
> Bottom bracket height: +87mm
> Rear base: 350mm
> Steering angle: 72º
> Reach: 605mm
