Clean Trials X1 26″ WC Edition

Clean Trials presents the evolution of its X1 model in 26″ with the World Cup edition, equipped with more exclusive components, such as the fork and the Clean carbon fiber handlebar. Another great novelty is that this X1 receives the wheels of the X2 model, a very important equipment plus. The final weight of the set is 8.5 kilos.
Clean Trials X1 26
The Clean X1 26″ WC Edition features a high-quality 6061 T6 + 7075 T6 aluminum frame. The headset is tapered, being 1 1/8″ at the top and 1/5″ at the bottom, an aspect that helps improve the stiffness and weight of the set considerably.

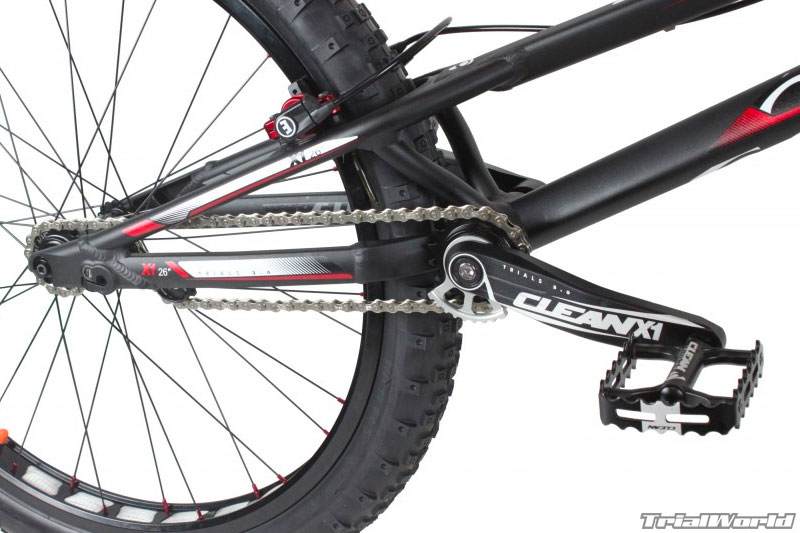

The vertical dropouts are CNC machined and the chain tensioner is integrated into the frame itself. Also CNC machined HS mounts, fully integrated into the seatstays.
Clean Trials X1 26
For the brakes there are two options: HS33 and Clean T13.
The final price of the Clean X1 26″ WC Edition is €2,150

FEATURES CLEAN TRIALS X1 26″ WC EDITION

Picture: Clean X1. Aluminum 6061 T6 + 7075 T6
Fork: Clean X2. Carbon Fiber

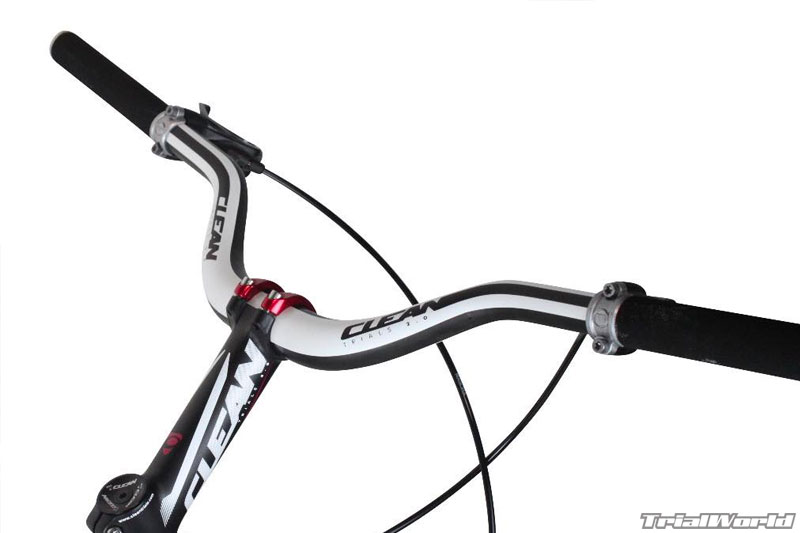

Handlebar: Clean carbon fiber. 107mm height
Fists: Clean extra-fine foam
Stem: Clean 145×25
Address: Clean Tapered. Superlight. Semi Integrated
Bushings: Clean Cone. 100mm front, 116mm rear
Brakes: Magura HS33 / Clean T13
Stands: Clean Washerless

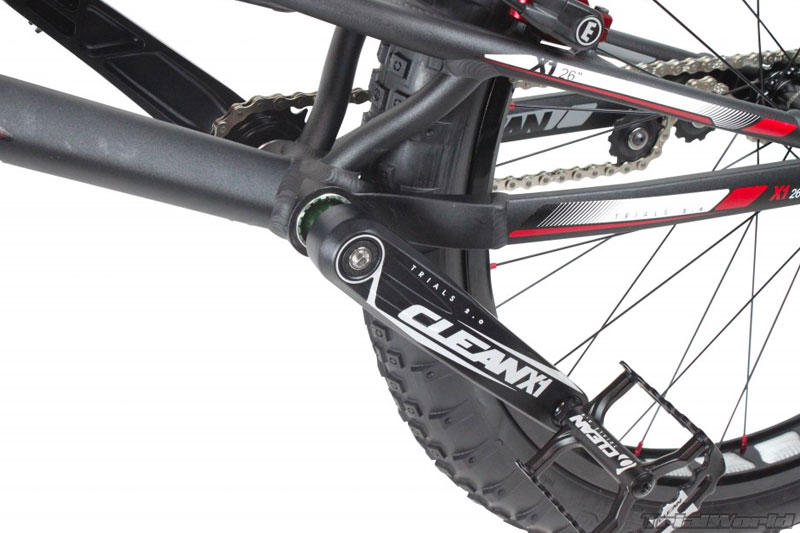

Bottom bracket: ISIS 170mm + BSA ISIS 128mm Cranks
Pedals: Clean Single Cage.
Chain: KMC 610HX
Tensor: Built-in clean. 7075 CNC. 11T plastic wheels.
Tires: Clean High Profile.
Spokes: 1.8mm Black
Nipples: 16g Aluminium Red
Freewheel: 108.9 thread
Fixed Sprocket: Clean 15T
Front Tire: Monty Pro Race 26″
Rear Tire: Monty Pro Race 26″
Front Camera: CST
Rear Camera: CST
Weight: 8.5 kilos.

CLEAN X1 26″ GEOMETRY

Overall length: 1085mm
Bottom bracket height: +79mm
Rear base: 380mm
Steering angle: 72º
Reach: 670mm
