Clean Trials, one of the leading brands in Trial bikes, updates its top-of-the-range model, the Clean Trials K1, equipped as standard with a carbon fibre frame, with comprehensive improvements, giving way to the new K1.2, which will be part of the brand’s catalogue in 2019 and 2020.
These improvements will also come to the 26-inch Clean Trials K1.2, which at the time was the first carbon trial bike made in 26 inches.
> Bike trial equipment
WHAT’S NEW IN CLEAN TRIALS K1.2
New graphics of the bike, keeping a UD carbon throughout its structure except in the first layer which uses 12K to give it a more spectacular look.

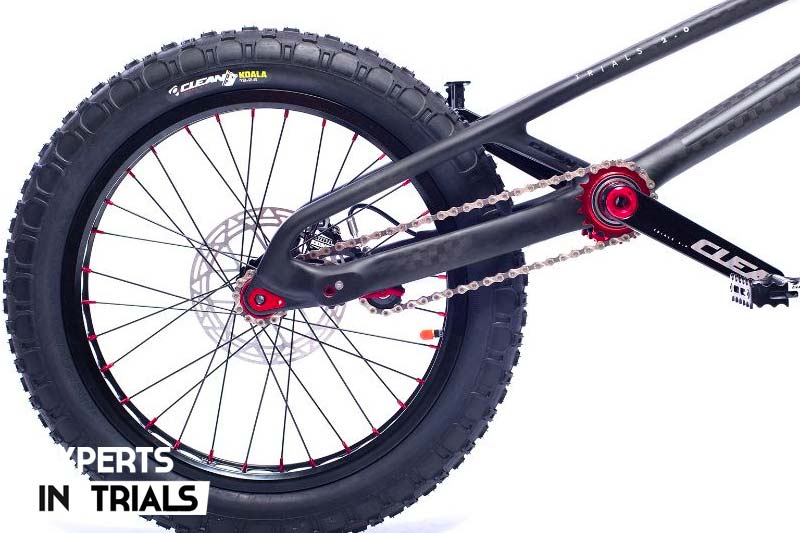

On the Clean Trials K1.2 it is worth highlighting the new X3 thru-axle hubs, with 12mm diameter axles, which thread to interchangeable inserts made of 7075 aluminum. The fixed sprocket of the K1.2 is splined manufactured by Shimano HG.
Another novelty is the skid plate, which has been redesigned with new inserts inside the carbon frame.
The fork of this Clean Trials K1.2 is made of carbon and is prepared for both 12mm thru-axle (standard) and other standard hubs by easily swapping the front dropouts.
CLEAN TRIALS K1.2 FEATURES
Picture: Clean K1
Fork: Clean K1

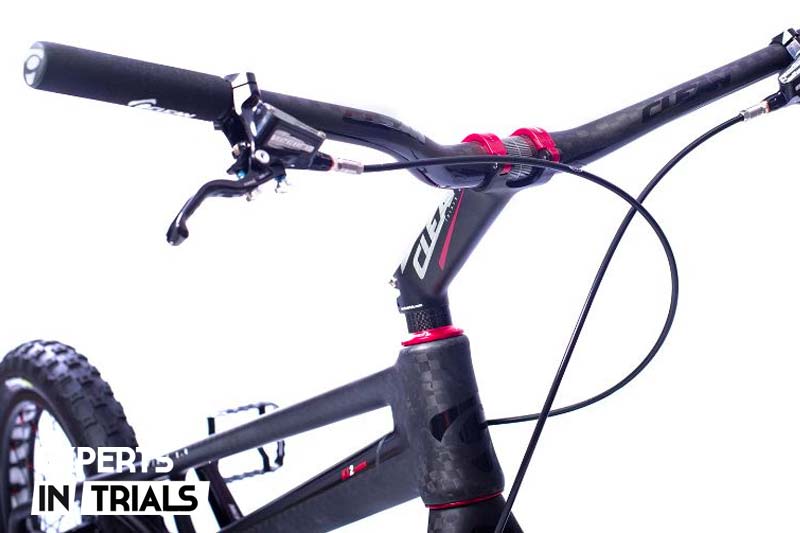

Handlebar: Clean Carbon Fiber 103
Fists: Clean extra-fine foam
Power: Clean 152.6×27.6
Address: Clean Tapered. Superlight. Semi Integrated
Bushings: Clean X3 Thru axle 12mm. 104mm front, 120mm rear (Shimano HG)
Brakes: Hope Tech3
Disks: Clean RS 160mm + 162.5mm
Disc Protector: Included
Bottom bracket: Clean 3P Crankset. Axle 30mm. Press Fit. Full CNC. 160mm. New Setting
Pedals: Clean Single Cage.
Chain: KMC X9
Tensor: Built-in clean. 7075 CNC. Aluminium wheels. 10T.
Tires: Clean High Profile.
Spokes: 1.8mm Black
Nipples: 16g Aluminium Red
Freewheel: 108.9. 18T. Shimano HG
Fixed Sprocket: Clean 12T
Front Tire: Koala 20″
Rear Tire: Koala 19″
Front Camera: Maxxis Extralight
Rear Camera: Maxxis Extralight
CLEAN TRIALS K1.2 GEOMETRIES
Overall length: 1005mm
Bottom bracket height: +87mm
Rear base: 350mm
Steering angle: 72º
Reach: 605mm
